I've been watching ebay for awhile, nothing there. I'll try carparts next. If I can;'t find a used on I may just go with the Axial SS in the end.
This is what I mean: 17-510
Well, I guess I kinda answered my own question...After further review it looks like part # P610-17-510B includes everything one would need, minus the bushing.
I checked, the Miata shifter part # is different (M529-17-510A) and costs about half of what the S2 shifter does. But if the both share the same transmission, maybe the Miata shifter is shorter? Cheap SS kit anyone?!

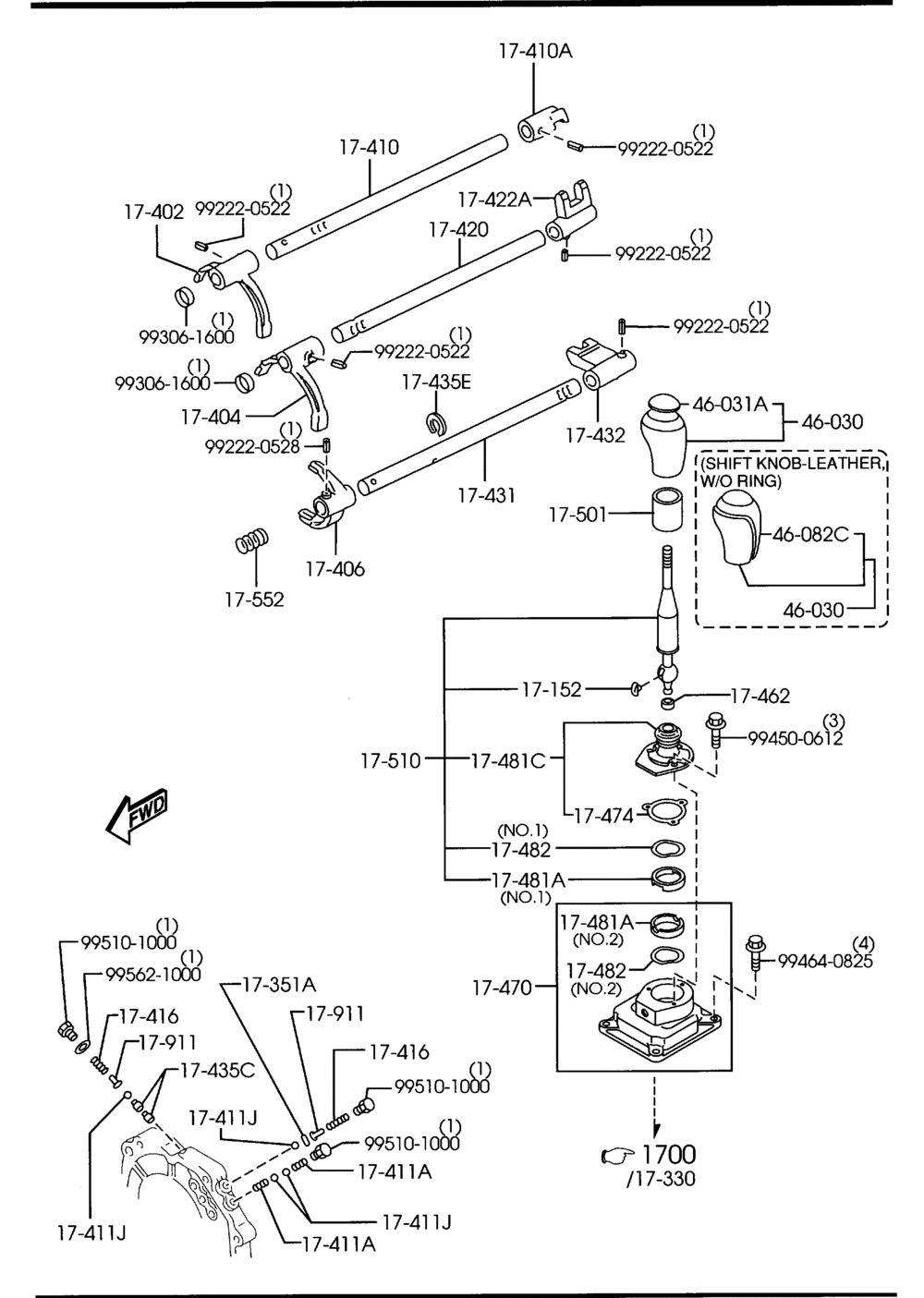

Part diagram from a 2009 Miata:
Last edited by Smutterbutter; 03-24-2015 at 01:33 PM.
It looks completely different, so maybe not. I suppose it would make too much sense. I just assumed they swapped the PPF mount from one side of the tailhousing to the other. It's all different, huh ...
I don't think they shar the same trans but they do both bolt up. I was talking about getting the whole trans from the junk yard. I got mine complete with shifter and throw out bearing and fork and bell housing for $1200 shipped. It only had 18,000 miles on it.
some of the yards don't have or include the shifter. Did you try a WTB ad for an OE here? Somebody who did the AF shifter may want to part with the OE.
I don't think they shar the same trans but they do both bolt up. I was talking about getting the whole trans from the junk yard. I got mine complete with shifter and throw out bearing and fork and bell housing for $1200 shipped. It only had 18,000 miles on it.
Yikes! I have the trans already (50k mi), managed to find it for $400 local but sans the shifter unfortunately.
Originally Posted by TeamRX8
They are close to being the same, but have some minor differences.
some of the yards don't have or include the shifter. Did you try a WTB ad for an OE here? Somebody who did the AF shifter may want to part with the OE.
Contacted Mazmart to see what he had, I'll try a WTB add but seems like hardly any S2 parts/partouts come up at all.
You have to ohm it out and figure out which one is which, I can remember. Then cut off the old connectors and I soldered and heat shrunk mine. I also used the new style connectors not the old ones.
you're rebuilding a rotary engine, but are stumped by a simple on/off 2-wire sensor connector rewiring? Wtf ..
I had an extra pair of old S1 switches, snipped the connectors with wires off of them, and replaced them on the S2 sensors with another set of simple snap-plug connectors. This allows me to plug it into my S1 harness, swap in an S1 trans in an emergency, or install snap-plug connectors on replacement S2 sensors and plug them in without any issue ...
I checked, the Miata shifter part # is different (M529-17-510A) and costs about half of what the S2 shifter does. But if the both share the same transmission, maybe the Miata shifter is shorter? Cheap SS kit anyone?!
Part diagram from a 2009 Miata:
P601-17-510H is all NC 6 SPEED.
P610-17-510D is S2 RX-8 6 speed shifter
you're rebuilding a rotary engine, but are stumped by a simple on/off 2-wire sensor connector rewiring? Wtf ..
I had an extra pair of old S1 switches, snipped the connectors with wires off of them, and replaced them on the S2 sensors with another set of simple snap-plug connectors. This allows me to plug it into my S1 harness, swap in an S1 trans in an emergency, or install snap-plug connectors on replacement S2 sensors and plug them in without any issue ...
snap-plug connectors, cheap & easy
Hahaha, I will gladly admit my limitations and most anything electrical beyond wiring speakers is not easy for me.
So in the end you wind up with the S2 end of the neutral/reverse connectors with snap plugs leading to the S1 harness? What do you do about water/dirt? I would love to see a pic of the end result.
^^not sure that it matters since they seem to be an entire different design.
Which ones, there are 3 I listed?...
Not in P66M they (2) are almost identical.....the P part number ones.
Smutter in post says he was "searching" for a NC Miata shifter, he came up with a M529-17-510A, which is incorrect for any 6 Speed P66M trans.....does he not have an S2 P66M trans??..
NC's is USA (NA) have 5 and 6 speed Transmissions, totally different.
If you read thd thread progress. It was because I (mistakenly) suggested that S2 and NC 6-spd shifters might be interchangeable. After I looked at the NC 6-spd parts diagram it seemed obvious they are not. So the NC shifter discussion became irrelevant after this was realized.
