Read my spark plugs (scary)
#1
rotorized!!!
Thread Starter
Join Date: Feb 2006
Location: San Luis Obispo, CA
Posts: 653
Likes: 0
Received 0 Likes
on
0 Posts
Read my spark plugs (scary)

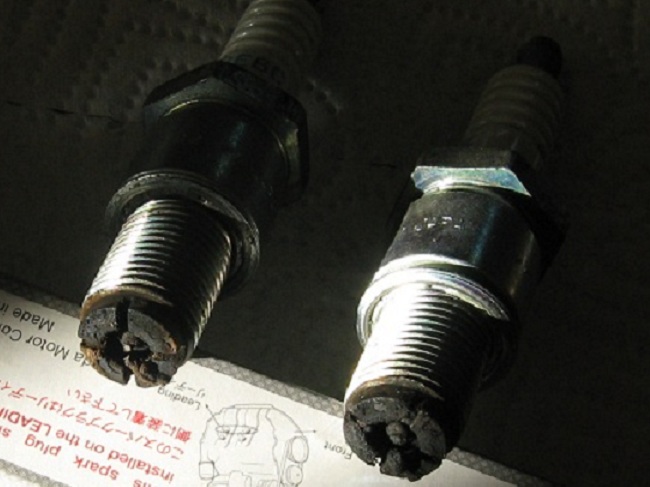

Here are my spark plugs, as far as I know they may be the originals the car came with. This is after 76,600 miles. I've premixed for about half those miles. After one look at these things I put a whole can of seafoam in the gas tank and should probably do a full de-carbon procedure. Anything else you guys can add other than change them more often you idiot?
The left side is the front leading, the middle is the rear. I don't know if the trailing ones are in order and the picture doesn't even do them justice, the edges of the electrodes are carboned up and the front leading had a quarter of it's opening gunked over.
The left side is the front leading, the middle is the rear. I don't know if the trailing ones are in order and the picture doesn't even do them justice, the edges of the electrodes are carboned up and the front leading had a quarter of it's opening gunked over.
![Name: photo-3.jpg
Views: 179
Size: 111.8 KB](https://www.rx8club.com/attachments/series-i-tech-garage-22/237061d1501244086-read-my-spark-plugs-scary-photo-3.jpg)
#3
no agenda
iTrader: (2)
When I was running NA my plugs always looked like that.
Not quite as bad, those might have been left in a bit too long ... but they always had deposits on it like that and the same colour.
I say they look fine. Fine as in they needed to be changed but they look normal to me.
Not quite as bad, those might have been left in a bit too long ... but they always had deposits on it like that and the same colour.
I say they look fine. Fine as in they needed to be changed but they look normal to me.
#5
Wonder what the inside of your engine looks like? I'd be very intrested to see what your decarbon process can do to those plugs? And then change them afterward.
Last edited by Silver_Surfer; 01-25-2012 at 10:07 AM.
#8
Administrator
nope that right. thats what mine looked like when they came out last. mine were a little more fouled and "wetter" because I had lost a couple coils just before pulling them
Last edited by zoom44; 01-25-2012 at 01:52 PM.
#11
Administrator
there were 30k miles on those plugs. but remember this, much of what you see on the leading plugs is from the spectacular coil failure. they would have looked more like the trailings before that happened( but probably had some build up similar to the OPs, due to the number of short trips I make).
#12
rotorized!!!
Thread Starter
Join Date: Feb 2006
Location: San Luis Obispo, CA
Posts: 653
Likes: 0
Received 0 Likes
on
0 Posts
I think I'd have demolished my engine by now if I'd been detonating, not to mention I would have heard it as well
I've already replaced these plugs with new ones and I think I've earned at least 2 mpg back if not more, I plan on doing a carbon cleaning soon and I'm definately taking a video of that one after I run a few cans of seafoam thru the gas to get the ball rolling on cleaning the engine out. I'll take a video and we might do two rx8s side by side stinking up the whole city![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
I'm pretty sure the front was still firing because I didn't notice too much of a power gain with the new plugs, there was a small exposed tip of the electrode that still allowed firing, not like zoom's horribly encrusted one in that picture though.
I've already replaced these plugs with new ones and I think I've earned at least 2 mpg back if not more, I plan on doing a carbon cleaning soon and I'm definately taking a video of that one after I run a few cans of seafoam thru the gas to get the ball rolling on cleaning the engine out. I'll take a video and we might do two rx8s side by side stinking up the whole city
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
I'm pretty sure the front was still firing because I didn't notice too much of a power gain with the new plugs, there was a small exposed tip of the electrode that still allowed firing, not like zoom's horribly encrusted one in that picture though.
#13
Registered
The leads look like part of the insulator is just cracked off and gone to me, indicating detonation; is it just the angle of the photo?
Are the internal insulators cracked?
/or is past experience clouding my vision? LOL
Are the internal insulators cracked?
/or is past experience clouding my vision? LOL
Last edited by Rote8; 01-26-2012 at 07:39 AM.
