Ring gear came off
So I have my brothers 04 rx8 In my garage for a new clutch and flywheel. And come to find out the ring gear isn't attached to the flywheel. I'm at a loss as to how to replace the flywheel now that I can't use a ring gear lock to bind the motor, any suggestions would be helpful. I've been crusing the forums here for a few days and can't find anything on the topic of binding a rotory motor. Can it be done without damage to the motor?
#2
How did the ring gear come off?
You could try locking the engine via the front 19mm bolt but it's not the best solution as it may stress the assembly more than it's needed.
If everything else fails... spot weld the ring on the old flywheel and call it a day, you're replacing it anyway
You could try locking the engine via the front 19mm bolt but it's not the best solution as it may stress the assembly more than it's needed.
If everything else fails... spot weld the ring on the old flywheel and call it a day, you're replacing it anyway
![Wink](https://www.rx8club.com/images/smilies/wink.gif)
#3
Out of NYC
iTrader: (1)
unless u did something seriously wrong there is no way the ring gear to fall off. they are heat fit if it comes off it should chew ur flywheel, clutch, probably ur tranny and ur leg when doing 7k rpm.
if i were u i will replace them, just to be safe
at this point the easiest way is to use impact to get the big 54mm nut off, no other way easier than this, factory FW have Loctitie on so u can heat the big nut up with a propane torch for a minute, then bang it with an impact, it will come right off.
if i were u i will replace them, just to be safe
at this point the easiest way is to use impact to get the big 54mm nut off, no other way easier than this, factory FW have Loctitie on so u can heat the big nut up with a propane torch for a minute, then bang it with an impact, it will come right off.
Last edited by nycgps; 04-30-2012 at 08:01 PM.
#5
Registered User
Thread Starter
Join Date: Apr 2012
Location: Vancouver
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
My brother destroyed his clutch and kept trying to start it, I assume that's how it came off. All I know is when I dropped the tranny it wasn't attached, it just spun on the flywheel
#6
Grasshopper
iTrader: (1)
I've had to work on a similar issue on a local kid's RX8.
He was having issues with the clutch slipping and couldn't wait for the weekend for me to look at it.
So he kept driving it and caused more problems.

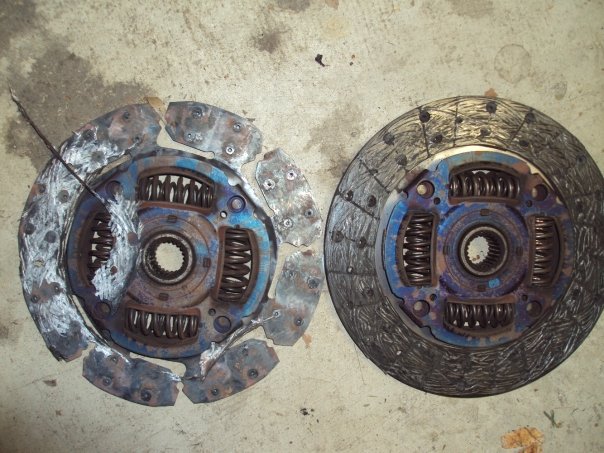

Here is what the clutch disc looked like (his is obviously the one on the left):
![Ring gear came off-clutch2.jpg](https://www.rx8club.com/attachments/series-i-tech-garage-22/184541d1336212507t-ring-gear-came-off-clutch2.jpg)
When I removed his starter, a large clump of disc material fell onto my lap.

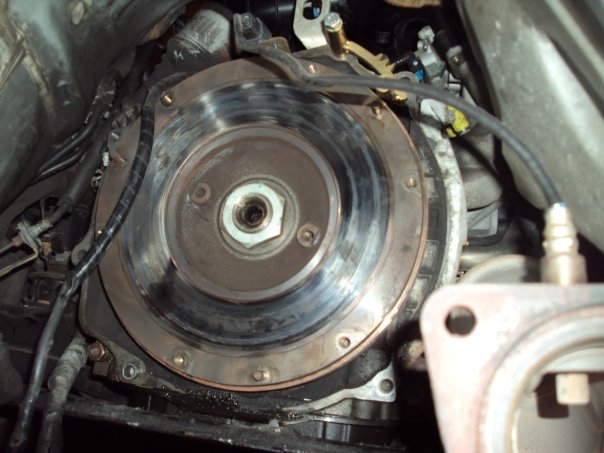

But once the transmission was removed, I too found the ring gear popped-off/came loose:
![Ring gear came off-clutch5.jpg](https://www.rx8club.com/attachments/series-i-tech-garage-22/184539d1336212507t-ring-gear-came-off-clutch5.jpg)
I was able to hold the ring gear (with a stopper), but the rest of the flywheel still spun.
Eventually, the ring gear just came off.
Like others mentioned above, use an impact to remove the flywheel nut.
He was having issues with the clutch slipping and couldn't wait for the weekend for me to look at it.
So he kept driving it and caused more problems.
Here is what the clutch disc looked like (his is obviously the one on the left):
![Ring gear came off-clutch2.jpg](https://www.rx8club.com/attachments/series-i-tech-garage-22/184541d1336212507t-ring-gear-came-off-clutch2.jpg)
When I removed his starter, a large clump of disc material fell onto my lap.

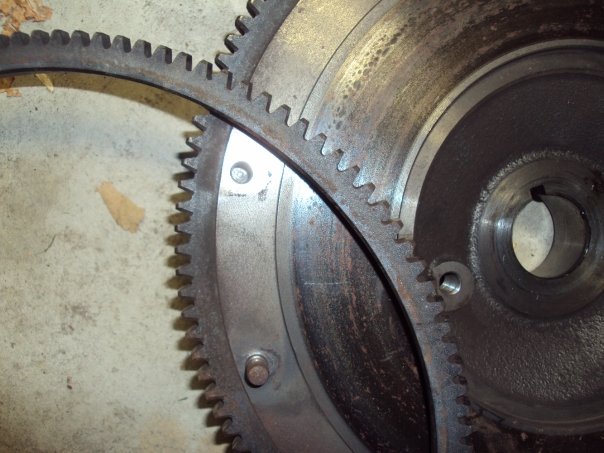

But once the transmission was removed, I too found the ring gear popped-off/came loose:
![Ring gear came off-clutch4.jpg](https://www.rx8club.com/attachments/series-i-tech-garage-22/184540d1336212507t-ring-gear-came-off-clutch4.jpg)
![Ring gear came off-clutch5.jpg](https://www.rx8club.com/attachments/series-i-tech-garage-22/184539d1336212507t-ring-gear-came-off-clutch5.jpg)
I was able to hold the ring gear (with a stopper), but the rest of the flywheel still spun.
Eventually, the ring gear just came off.
Like others mentioned above, use an impact to remove the flywheel nut.
