Old 05-26-2012, 12:29 AM
  #751
what was I thinking
Thread Starter
iTrader: (8)

houstonrx8er's Avatar

Join Date: Jun 2004
Location: Converse, TX
Posts: 2,408
Likes: 0
Received 0 Likes on 0 Posts
ok, just doubled the miles on the car. I think I am up to 60ish and a 1/2 a tank of gas left....ugh...cant wait to get rid of this gas.

I am also a bit hesitant to put the nose, undertray and wheel well liners until I figure this starting thing out.
Old 05-26-2012, 07:59 AM
  #752
Registered
iTrader: (3)

olddragger's Avatar

Join Date: Apr 2004
Location: macon, georgia
Posts: 10,828
Likes: 0
Received 38 Likes on 27 Posts
if you have 60 miles on it and it is still not cranking---more miles is not going to change anything.
Time to put a good load on the engine?
what are the vacuum readings?
Its not the trans or anything to do with the trans.
Its not the gas.
Does it act likes it wants to start?
double check the purge valve--it may be a factor.
The purge valve has the ability to cause difficult starting by loading the intake with gas fumes from the tank.
Just for kicks --just unplug the purge and see if it will crank.
Old 05-26-2012, 08:18 AM
  #753
what was I thinking
Thread Starter
iTrader: (8)

houstonrx8er's Avatar

Join Date: Jun 2004
Location: Converse, TX
Posts: 2,408
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by olddragger
if you have 60 miles on it and it is still not cranking---more miles is not going to change anything.
Time to put a good load on the engine?
what are the vacuum readings?
Its not the trans or anything to do with the trans.
Its not the gas.
Does it act likes it wants to start?
double check the purge valve--it may be a factor.
The purge valve has the ability to cause difficult starting by loading the intake with gas fumes from the tank.
Just for kicks --just unplug the purge and see if it will crank.
when you say put a load on it do you mean drive hard? I kind of did and out of those 30miles there were with lots of hills.

I can check the purge

it sounds like it wants to but its not quite there. would adding 2-cycle oil or I guess AT Fluid like someone else mentioned?
Old 05-26-2012, 08:30 AM
  #754
what was I thinking
Thread Starter
iTrader: (8)

houstonrx8er's Avatar

Join Date: Jun 2004
Location: Converse, TX
Posts: 2,408
Likes: 0
Received 0 Likes on 0 Posts

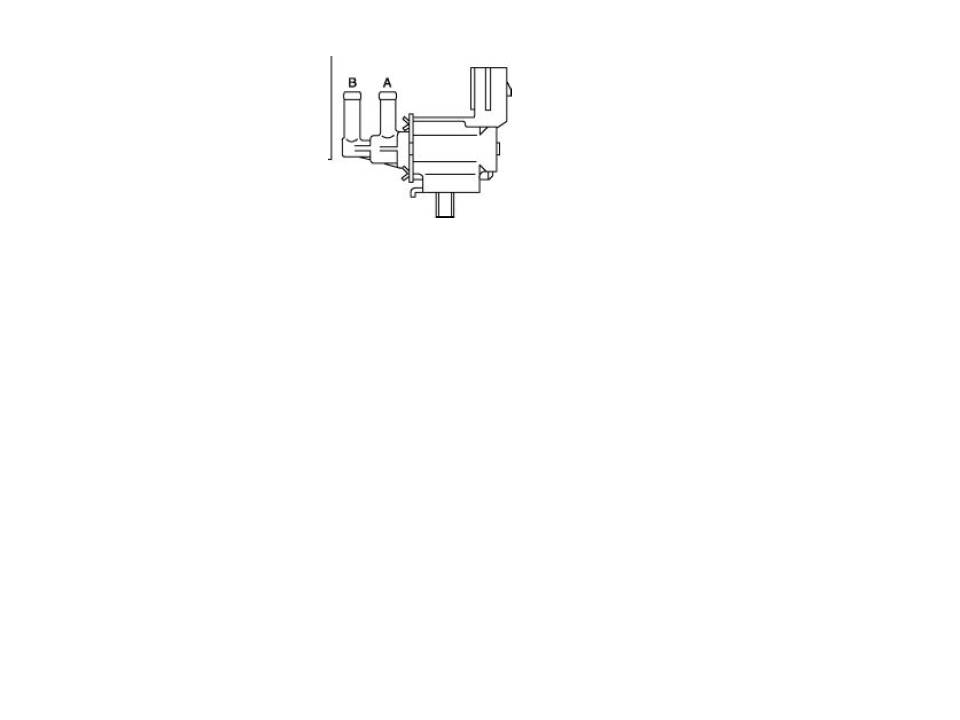

negative on the purge unless you are supposed to crank on it for a few cycles to evacuate the fumes....you are talking about this right
Attached Thumbnails an RX8er's rebuild thread-purge.jpg
Old 05-26-2012, 08:58 AM
  #755
SARX
iTrader: (2)

cornholio135's Avatar

Join Date: May 2006
Location: Converse TX
Posts: 2,008
Likes: 0
Received 1 Like on 1 Post
Originally Posted by shadycrew31
Oh I thought it was still down, weird. I can only imagine it has something to do with the S2 transmission.
this is what I was thinking.... there has to be a way to do a "by pass" to see if it starts..
Old 05-26-2012, 09:36 AM
  #756
what was I thinking
Thread Starter
iTrader: (8)

houstonrx8er's Avatar

Join Date: Jun 2004
Location: Converse, TX
Posts: 2,408
Likes: 0
Received 0 Likes on 0 Posts
I think if there was an issue with the safety switch it wouldn't turn over ......right
Old 05-26-2012, 09:46 AM
  #757
WENTGERMAN
iTrader: (6)

shadycrew31's Avatar

Join Date: Apr 2008
Location: Burbs,PA
Posts: 5,806
Received 31 Likes on 22 Posts
Originally Posted by houstonrx8er
I think if there was an issue with the safety switch it wouldn't turn over ......right
Correct thats why I stopped that line of thought.
Old 05-26-2012, 12:12 PM
  #758
what was I thinking
Thread Starter
iTrader: (8)

houstonrx8er's Avatar

Join Date: Jun 2004
Location: Converse, TX
Posts: 2,408
Likes: 0
Received 0 Likes on 0 Posts
well I picked up another PV from Hoss, after I scarf down this PB&J I will give it a shot

I also got a timing light and vacuum tester just for the hell of it
Old 05-26-2012, 12:20 PM
  #759
what was I thinking
Thread Starter
iTrader: (8)

houstonrx8er's Avatar

Join Date: Jun 2004
Location: Converse, TX
Posts: 2,408
Likes: 0
Received 0 Likes on 0 Posts
9k and I were talking about it and there might be a possibility for us to borrow a formal mazda compression tester. I may be looking into that.
Old 05-26-2012, 12:21 PM
  #760
what was I thinking
Thread Starter
iTrader: (8)

houstonrx8er's Avatar

Join Date: Jun 2004
Location: Converse, TX
Posts: 2,408
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Charles R. Hill
BTW, to test the purge valve to be the problem all you need to do is pinch the rubber hose on top of the UIM. This will seal off the vent circuit that runs back to the fuel tank. No need to swap parts around, either.
you meant the loop ontop of what they call the catch can...thats super easy
Old 05-26-2012, 12:31 PM
  #761
what was I thinking
Thread Starter
iTrader: (8)

houstonrx8er's Avatar

Join Date: Jun 2004
Location: Converse, TX
Posts: 2,408
Likes: 0
Received 0 Likes on 0 Posts
gotcha, and going to go do it now

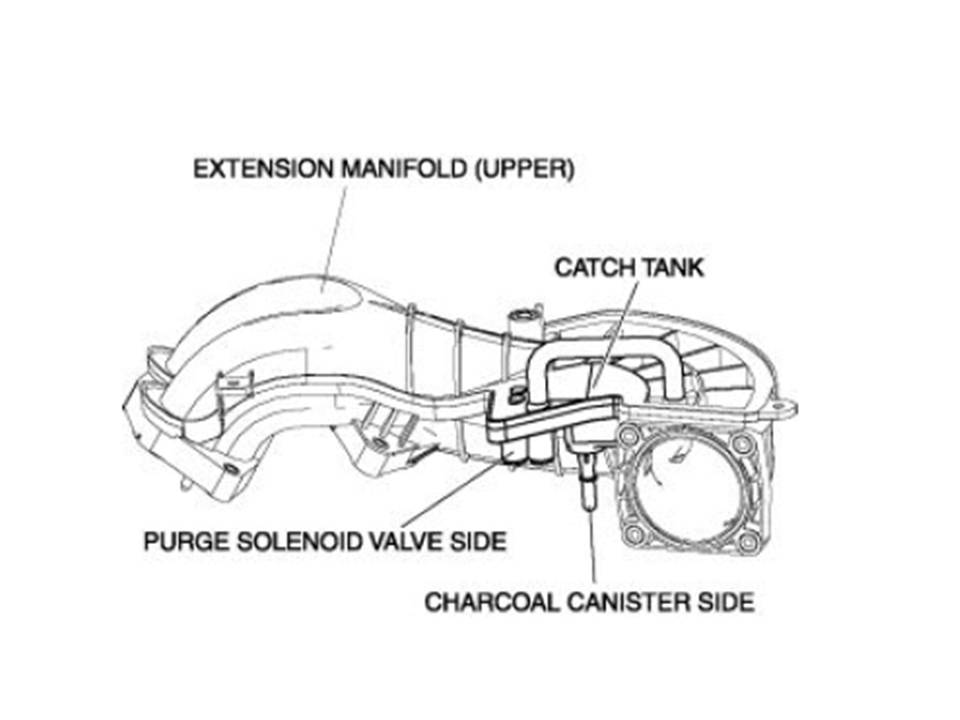

here is why I said that...but I dont see how it could be a function can?
Attached Thumbnails an RX8er's rebuild thread-presentation1.jpg
Old 05-26-2012, 01:52 PM
  #762
Registered
iTrader: (3)

olddragger's Avatar

Join Date: Apr 2004
Location: macon, georgia
Posts: 10,828
Likes: 0
Received 38 Likes on 27 Posts
yea --putting a load on it means giving it a good bit of throttle. Of course have the rpms up too. Dont give it a lot of throttle below 3K rpm.
Like RG/myself was speaking off earlier.
Try the purge valve thing first---just unplug the connector. ( OOPS JUST SAW ADDITIONAL POSTS __CHARLES METHOD IS BETTER)
If that doesnt help--just pull the leading plugs and squirt some ATF into each rotor face. It will smoke to high heaven but if it is compression related then that will help.
Now IF it cranks after the atf-that doesnt mean it has low compression from a bad build--it just means that the compression is not there yet and continual driving could increase the sealing as it wears in.
x fingers.

Last edited by olddragger; 05-26-2012 at 01:55 PM.
Old 05-26-2012, 07:22 PM
  #763
what was I thinking
Thread Starter
iTrader: (8)

houstonrx8er's Avatar

Join Date: Jun 2004
Location: Converse, TX
Posts: 2,408
Likes: 0
Received 0 Likes on 0 Posts
well shady came out today and after a little bit of tinkering the son of a bitch started. all shady did was cycle the alarm but it was a 1 time thing....lmao

I went ahead and drove some more, got a new battery and it just wont do it. but damnit it is soooooooooo close. guess I will go get some ATF.
Old 05-26-2012, 07:30 PM
  #764
SARX
iTrader: (2)

cornholio135's Avatar

Join Date: May 2006
Location: Converse TX
Posts: 2,008
Likes: 0
Received 1 Like on 1 Post
It's gotta be something "logical" in the security system? Its just really strange that it will push start....give shady enough time he's de manz...
Old 05-26-2012, 09:43 PM
  #765
what was I thinking
Thread Starter
iTrader: (8)

houstonrx8er's Avatar

Join Date: Jun 2004
Location: Converse, TX
Posts: 2,408
Likes: 0
Received 0 Likes on 0 Posts
well after injecting some 2-cycle oil in the service port it fires up like a champ. I hope that doesnt mean something is jacked up....professionals?

just put another 30miles on it. it is just soooo freaking close to starting on its own
Old 05-26-2012, 11:15 PM
  #766
Gulf Coast Rotaries
iTrader: (1)

Chino_rx3's Avatar

Join Date: Nov 2011
Posts: 604
Received 0 Likes on 0 Posts
My guess is compression.. It has happen before to some of our engines we just drive it like normal ( you dont want to know whats normal is for us ) we push started a few times then is good to go from their on . But Most of the time we just add oil to rotOrs and fires right up.. Try it let it sit for a day , oil the rotors , check battery is full , clean spark plugs, and it should start up and smoke out and then you will know for sure is just compression and your seals haven't seals right, needs a good drive.( speed aka Rpms ) just my little experience around roTories
Old 05-26-2012, 11:45 PM
  #767
WENTGERMAN
iTrader: (6)

shadycrew31's Avatar

Join Date: Apr 2008
Location: Burbs,PA
Posts: 5,806
Received 31 Likes on 22 Posts
P.S. his vacuum at idle is 14.
Old 05-27-2012, 12:54 AM
  #768
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 13,718
Received 337 Likes on 292 Posts
Strange that it won't start with 14" of vac. You sure it has normal fuel pressure?
Old 05-27-2012, 12:59 AM
  #769
WENTGERMAN
iTrader: (6)

shadycrew31's Avatar

Join Date: Apr 2008
Location: Burbs,PA
Posts: 5,806
Received 31 Likes on 22 Posts
Originally Posted by dannobre
Strange that it won't start with 14" of vac. You sure it has normal fuel pressure?
No way to tell for certain... but when we put in about 2 ozs of premix per housing she started right up! So it doesn't appear to be fuel related.

I didn't get a chance to put the vacuum gauge on during startup though. It seems to just be a starting issue, I think it has to do with all the new parts but cannot be for certain.
Old 05-27-2012, 07:36 AM
  #770
what was I thinking
Thread Starter
iTrader: (8)

houstonrx8er's Avatar

Join Date: Jun 2004
Location: Converse, TX
Posts: 2,408
Likes: 0
Received 0 Likes on 0 Posts
yea that is kind of where I am at hoping everything is new and has just not finished seating.

I am not sure that even after 100 miles this is a "bad thing" but it certainly leaves a room for concern.

going to get some fresh gas today, then going for a cruise. hell maybe I will just carry around 2-cycle oil and inject it to the service ports each time I need to start up if I cant park on a hill
Old 05-27-2012, 08:19 AM
  #771
what was I thinking
Thread Starter
iTrader: (8)

houstonrx8er's Avatar

Join Date: Jun 2004
Location: Converse, TX
Posts: 2,408
Likes: 0
Received 0 Likes on 0 Posts
its kind of funny. even after all this I was just sitting here drinking coffee and I realized!

I cant wait to rebuild another motor *edit: I just hope its not this one prematurely...lol
Old 05-27-2012, 09:12 AM
  #772
WENTGERMAN
iTrader: (6)

shadycrew31's Avatar

Join Date: Apr 2008
Location: Burbs,PA
Posts: 5,806
Received 31 Likes on 22 Posts
Originally Posted by houstonrx8er
its kind of funny. even after all this I was just sitting here drinking coffee and I realized!

I cant wait to rebuild another motor *edit: I just hope its not this one prematurely...lol
Its kind of fun right!

Why do you think I was so amped to help you with yours.

Next up is hoss's engine.
Old 05-27-2012, 09:30 AM
  #773
Registered
iTrader: (3)

olddragger's Avatar

Join Date: Apr 2004
Location: macon, georgia
Posts: 10,828
Likes: 0
Received 38 Likes on 27 Posts
glad that worked.
14 of vacuum is low for a fresh engine--but more miles/heat cycles and increasing load may do the trick.
It may not... but to early to tell.
You are ported but no change in the timing of the ports so that doesnt really affect anything.
At least now you know what you are dealing with.
If it was me--i would take it out and do a couple full throttle runs in 2nd and 3nd gears with a redline of 7.5rpms. If it doesnt seal after a few of those--then there is a problem and a compression check will be needed. I dont like how it cranked so well to begin with then died. If it wasnt starting from the beginning........
It may be wise to premix at 1 oz to the gallon to start with--just a hunch on my part.
Xing fingers for you man.
Old 05-27-2012, 09:40 AM
  #774
what was I thinking
Thread Starter
iTrader: (8)

houstonrx8er's Avatar

Join Date: Jun 2004
Location: Converse, TX
Posts: 2,408
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by shadycrew31
Its kind of fun right!

Why do you think I was so amped to help you with yours.

Next up is hoss's engine.
the bug has bit

but his is already assembled


Originally Posted by olddragger
glad that worked.
14 of vacuum is low for a fresh engine--but more miles/heat cycles and increasing load may do the trick.
It may not... but to early to tell.
You are ported but no change in the timing of the ports so that doesnt really affect anything.
At least now you know what you are dealing with.
If it was me--i would take it out and do a couple full throttle runs in 2nd and 3nd gears with a redline of 7.5rpms. If it doesnt seal after a few of those--then there is a problem and a compression check will be needed. I dont like how it cranked so well to begin with then died. If it wasnt starting from the beginning........
It may be wise to premix at 1 oz to the gallon to start with--just a hunch on my part.
Xing fingers for you man.
yea I hope so, I havent done a lot of full throttle so I am going to go get gas, quick wash and a good run. it does seem the more its driven the closer it gets
Old 05-27-2012, 10:54 AM
  #775
what was I thinking
Thread Starter
iTrader: (8)

houstonrx8er's Avatar

Join Date: Jun 2004
Location: Converse, TX
Posts: 2,408
Likes: 0
Received 0 Likes on 0 Posts
oh so I just did a few 2-4th runs and also got a half tank of fresh gas. still not starting

guess its time to entertain a compression test
