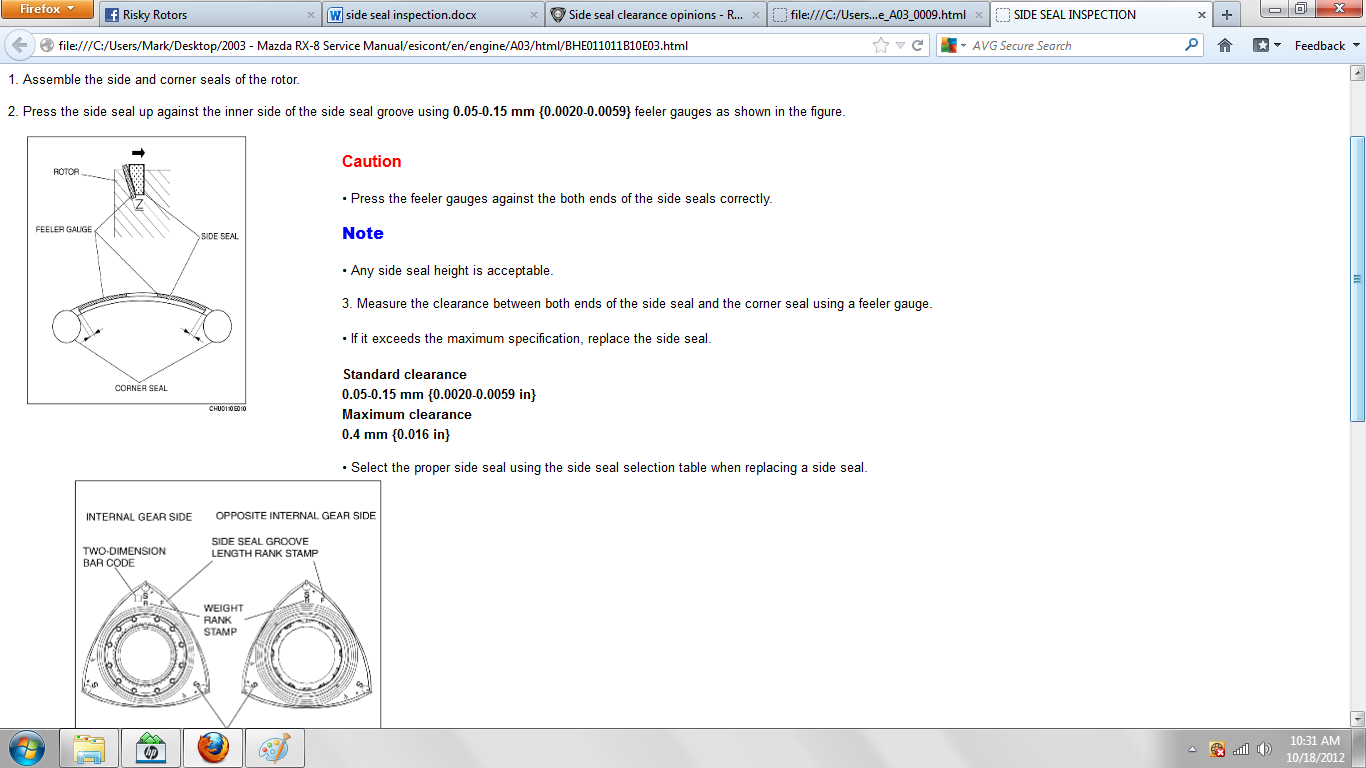

Getting ready to assemble my motor, but i have a question about the side seal clearance. Above in picture, if you can see it, 'it shows to measure both sides of the seal to the corner seal.

standard clear. .05-.105mm {.0020-.0059in}
max clear. .4mm {.016in}

To me it sounds like the gap will be to large if done this way, but being a side exhaust port, does the clearance need to be this large for the heat/cooling expansion.

Right now my clearance with the seal up against the corner seal it is a large {.003in} close to {.004in} But if it needs to be done as listed above and get cleared on both sides, then i will have some more filing to do.

Any suggestions are much appreciated.

Motor is staying N/A
has racing beat porting template.
mazmart water pump/thermo combo.
oil pressure reg. has been upgraded.

Egh large picture didnt load right,
Mod edit to fix the pic

Slidin8

picture didnt load because you havent put [/img] at the end

Z0oMzo0m

iTrader: (4)

ahh good catch, may have deleted it on accident.. lol but there is a picture loaded

nycgps

iTrader: (1)

if i have to do it, i keep it at 0.015mm,which is tighter than what Mazda recommends

oh, u are talking about that, i will still keep it at a bit tighter than what.mazda recommended

Z0oMzo0m

iTrader: (4)

ok, got it figured out, the DOC. is just confusing. but my specs are ok.
