What is this???
I just bought an RX8 but crashed, i was trying to take everything off to put new bumper and paint it, but now i dont know what this is, is my first RX8. Can you tell me if i need it and where is it suppost to be placed at?
Attached Thumbnails What is this???-2011-02-27_13-58-38_672.jpg
Rx8Les is offline
Reply Like
Old 02-27-2011, 01:55 PM
  #2
Registered
iTrader: (1)

TimmyG's Avatar

Join Date: Jul 2010
Location: Aylmer Ontario
Posts: 57
Likes: 0
Received 0 Likes on 0 Posts
it looks to be part of the vfad. im assuming its the front bumper that your fixing
TimmyG is offline
Reply Like
Old 02-27-2011, 01:56 PM
  #3
Grasshopper
iTrader: (1)

Jon316G's Avatar

Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,779
Likes: 0
Received 46 Likes on 33 Posts
^Correct... its the VFAD actuator.
Jon316G is offline
Reply Like
Old 02-27-2011, 02:04 PM
  #4
Registered
iTrader: (1)

TimmyG's Avatar

Join Date: Jul 2010
Location: Aylmer Ontario
Posts: 57
Likes: 0
Received 0 Likes on 0 Posts
if it wasent for having taken my vfad out that would have looked like the most random car part
TimmyG is offline
Reply Like
Old 02-27-2011, 02:23 PM
  #5
Zoom-Zoom
Thread Starter
iTrader: (3)

Rx8Les's Avatar

Join Date: Feb 2011
Location: Miami, FL
Posts: 190
Likes: 0
Received 0 Likes on 0 Posts
so do i need it or can i just leave it off the car?
Rx8Les is offline
Reply Like
Old 02-27-2011, 02:28 PM
  #6
Grasshopper
iTrader: (1)

Jon316G's Avatar

Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,779
Likes: 0
Received 46 Likes on 33 Posts
Do you have the intake duct that sits behind the bumper?
Jon316G is offline
Reply Like
Old 02-27-2011, 02:38 PM
  #7
Zoom-Zoom
Thread Starter
iTrader: (3)

Rx8Les's Avatar

Join Date: Feb 2011
Location: Miami, FL
Posts: 190
Likes: 0
Received 0 Likes on 0 Posts
yes i have the huge box with the intake.. but ama buy a CAI soon
Rx8Les is offline
Reply Like
Old 02-27-2011, 03:42 PM
  #8
Registered
iTrader: (1)

TimmyG's Avatar

Join Date: Jul 2010
Location: Aylmer Ontario
Posts: 57
Likes: 0
Received 0 Likes on 0 Posts
the air box is not the intake duct. the duct is a long flexable tube in behind the bumper. if ur putting on a cai leave the whole vfad out its just a waste of space
TimmyG is offline
Reply Like
Old 02-27-2011, 04:07 PM
  #9
Grasshopper
iTrader: (1)

Jon316G's Avatar

Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,779
Likes: 0
Received 46 Likes on 33 Posts
Until you get a new intake, might want to plug the vacuum inlet port for the VFAD so you don't introduce a vacuum leak when the solenoid is energized.
What is this???-vfad-capped.jpg
Jon316G is offline
Reply Like
Old 02-27-2011, 04:17 PM
  #10
Zoom-Zoom
Thread Starter
iTrader: (3)

Rx8Les's Avatar

Join Date: Feb 2011
Location: Miami, FL
Posts: 190
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by TimmyG
the air box is not the intake duct. the duct is a long flexable tube in behind the bumper. if ur putting on a cai leave the whole vfad out its just a waste of space
Yes i have the duct but that vfad was just hanging loose so I don't even know where is suppost to be
Rx8Les is offline
Reply Like
Old 02-27-2011, 04:20 PM
  #11
Grasshopper
iTrader: (1)

Jon316G's Avatar

Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,779
Likes: 0
Received 46 Likes on 33 Posts
Originally Posted by Rx8Les
Yes i have the duct but that vfad was just hanging loose so I don't even know where is suppost to be

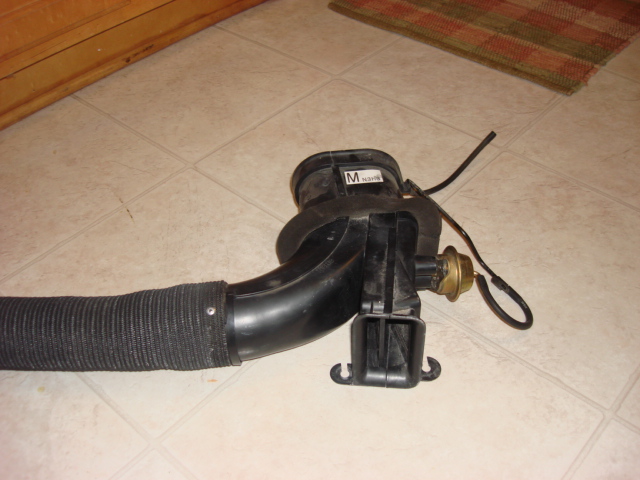

The duct has two sections... one is a flexable tube and the other is a straight plastic inlet.
Inside the plastic inlet there would be a flap that opens/closes to allow more airflow.
The actuator attaches to that flap.
What is this???-vfad.jpg

Honestly... keep the VFAD out and cap the nipple as I mentioned above until you get your new intake.
Last edited by Jon316G; 02-27-2011 at 04:23 PM.
Jon316G is offline
Reply Like
Old 04-08-2012, 10:23 PM
  #12
Zoom-Zoom
Thread Starter
iTrader: (3)

Rx8Les's Avatar

Join Date: Feb 2011
Location: Miami, FL
Posts: 190
Likes: 0
Received 0 Likes on 0 Posts
Just so that i dont make a new thread, i need to know what this is.. is connecterd to the cigarette lighter..
Attached Thumbnails What is this???-2012-04-08_18-57-41_778.jpg   What is this???-2012-04-08_18-57-54_55.jpg
Rx8Les is offline
Reply Like
Old 04-08-2012, 10:30 PM
  #13
weeeeeeeeee
iTrader: (12)

ShellDude's Avatar

Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 4,200
Received 229 Likes on 153 Posts
looks like another 12v power (cig lighter) housing.... not sure why someone would go through all that trouble though... there's an aux power plug in the center console and the fusebox is a whole 2.5' away .
ShellDude is offline
Reply Like
Old 04-08-2012, 10:59 PM
  #14
No respecter of malarkey
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 26,792
Received 2,044 Likes on 1,666 Posts
maybe they needed three lighter plugs for various accessories, who knows?

Congrat's on bumping and posting in a proper thread, kind of rare around here that I get to give kudos than bash someone for the opposite.
TeamRX8 is offline
Reply Like
Old 04-08-2012, 11:17 PM
  #15
on his 3rd rx8
iTrader: (3)

dozer's Avatar

Join Date: Dec 2006
Location: santa ana, ca
Posts: 6,034
Received 10 Likes on 5 Posts
Originally Posted by TeamRX8
maybe they needed three lighter plugs for various accessories, who knows?

Congrat's on bumping and posting in a proper thread, kind of rare around here that I get to give kudos than bash someone for the opposite.
this.
