Broke A/C belt adjuster bolt
#1
Registered
Thread Starter
Join Date: Aug 2009
Location: Ottawa, Ontario, Canada
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Broke A/C belt adjuster bolt
So I was changing the belts the other day and I guess I didnt loosen the idler pulley bolt enough and i snapped the adjusting bolt. Any idea how to get that out now?
Here's a pic: http://bit.ly/ZKeHEH
I broke bolt B. I took the idler pulley off completely (don't need A/C yet in Canada haha) but I still don't see where that bolt attaches to.
Here's a pic: http://bit.ly/ZKeHEH
I broke bolt B. I took the idler pulley off completely (don't need A/C yet in Canada haha) but I still don't see where that bolt attaches to.
#4
Registered
Thread Starter
Join Date: Aug 2009
Location: Ottawa, Ontario, Canada
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
I can see the top of the threads so I'm going to try and unscrew it. According to a Mazda technician, this bolt screws right into the engine block :s So hopefully I'll just be able to unscrew it and replace it.
#7
Registered
Thread Starter
Join Date: Aug 2009
Location: Ottawa, Ontario, Canada
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
@CRO8TIA that's the plan. I'm hoping to be able to get a drill chuck in there and unscrew the bolt that way. I'll let you guys know what happens. Thanks
#8
Registered
Join Date: Apr 2012
Location: Newtown, CT
Posts: 125
Likes: 0
Received 0 Likes
on
0 Posts
i just went through this two weeks ago. The head snaps off because the bolt is seized into the idler pully mount. I also tried to just thread it out since i had plenty of bolt sticking out, take my advice and forget about this route and save yourself a half hour. You may be able to drill it out and i initially was successful albeit i drilled crooked. It wasn't until i was re-tapping the hole that things truly went south when i snapped the tap off in the hole.
You can't get just the idler pulley mount either, it comes as a whole unit with the bracket, pulley, idler mount and the bolt that you snapped off. Sure its not a cheap part, and its dealer only but hey now i have a nice shiny bracket and a brand new idler pulley
You can't get just the idler pulley mount either, it comes as a whole unit with the bracket, pulley, idler mount and the bolt that you snapped off. Sure its not a cheap part, and its dealer only but hey now i have a nice shiny bracket and a brand new idler pulley
#9
Registered
Thread Starter
Join Date: Aug 2009
Location: Ottawa, Ontario, Canada
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts

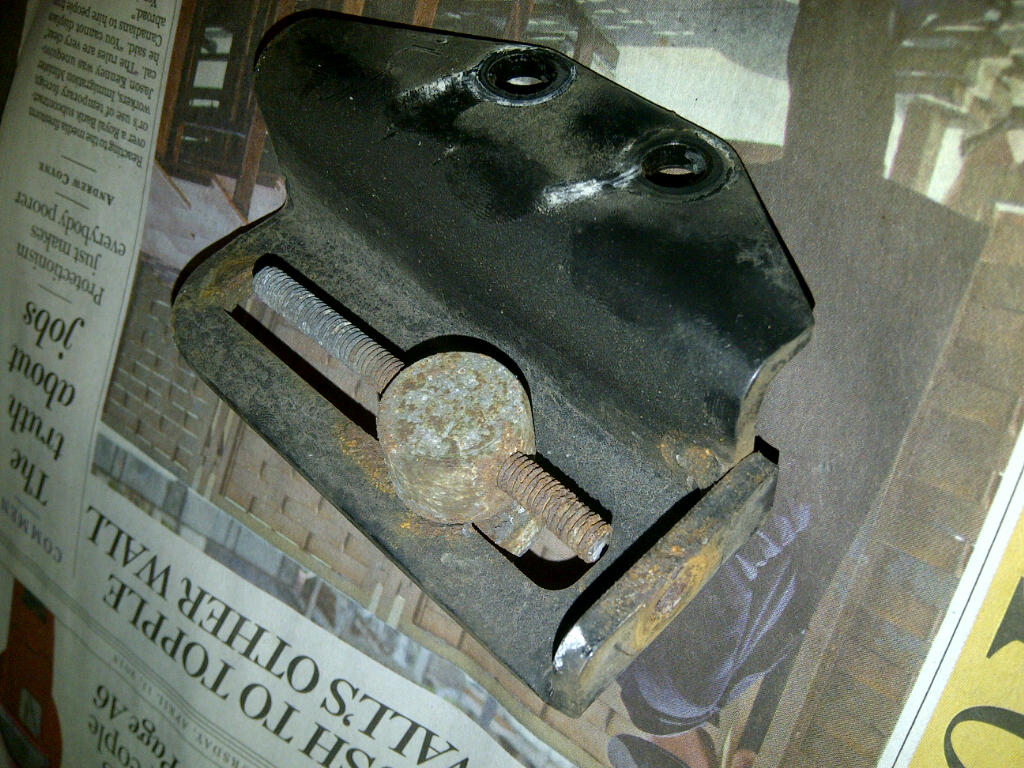

So I finally got around to taking the bracket out and here's what is left. The pulley mount seems pretty seized on there. I'm stubborn so I'm still going to try taking it out, but if the mount doesnt move, there's no sense in trying to save this anyways.
#11
Registered
Join Date: Apr 2012
Location: Newtown, CT
Posts: 125
Likes: 0
Received 0 Likes
on
0 Posts
If you do have to by the part then i would also avoid a used one. If you manage to find one that isn't seized already it's just a matter of time until it does and you're right back in this thread again. Who knows though, maybe mine and your 8s were badly maintained and the belts were never changed enough to keep that bolt free. I'd rather not have to replace this part every time i do the belts.
