O2 Sensor Failure: Front or Rear?
#1
Registered
Thread Starter
iTrader: (2)
Join Date: Oct 2007
Location: Pacific Northwest
Posts: 16,684
Likes: 0
Received 253 Likes
on
110 Posts
O2 Sensor Failure: Front or Rear?
I am partly creating this thread to see the list of 'related threads' generated for a match, but might leave it up here.
I've known our search engine is often less than helpful, but try searching for "O2 sensor". You get 6,040 threads. Every time the word "sensor" is mentioned
.
Anyway,
I believe my rear sensor is failing/failed, but trying to confirm that I am accurate, and it isn't the front sensor.
No persistent CEL to pull the code, but my reasoning:
Any takers?
So much for related threads....sigh.
I've known our search engine is often less than helpful, but try searching for "O2 sensor". You get 6,040 threads. Every time the word "sensor" is mentioned
![Wallbash](https://www.rx8club.com/images/smilies/wallbash.gif)
Anyway,
I believe my rear sensor is failing/failed, but trying to confirm that I am accurate, and it isn't the front sensor.
No persistent CEL to pull the code, but my reasoning:
- Getting misfires back in December prior to my complete CAT failure
- Replaced Coils, plugs, wires, filter, cleaned MAF
- still issues, MPG drops to ~9mpg
- Determine cat failure
- remove cat install loaner midpipe (friend's pipe had his O2 sensor on it)
- back up to 22-24mpg, full power (plus some), no misfires
- dealer replaces cat end of January, using my old O2 sensor
- I get misfires again, mileage drops to ~17-19
- misfires continue, still puzzled like crazy, mileage keeps dropping and I am clearly running way too rich
- someone suggests an O2 sensor failure, as I wasn't aware that they were read/write interactive, rather than just read only for emissions
- If a sensor would have gotten damaged from the clogged cat failure, the rear sensor makes sense
Any takers?
So much for related threads....sigh.
#2
Registered
iTrader: (25)
The rear sensor has no impact on performance ie mileage, misfires, etc plus it will throw a CEL if bad, all it does is monitor cat discharge gases. You can pull it and run without it even, no impact.
you can't guess a solution, you need someone with the skills and equipment to properly diagnose the vehicle
wrt misfires, have you tried restting the e-shaft profile?
It almost sounds like a clogged cat or exhaust to me, but again it takes a qualified diagnosis to figure these things, don't go swapping parts etc just because the forum yingyangs start spouting off guesses
you can't guess a solution, you need someone with the skills and equipment to properly diagnose the vehicle
wrt misfires, have you tried restting the e-shaft profile?
It almost sounds like a clogged cat or exhaust to me, but again it takes a qualified diagnosis to figure these things, don't go swapping parts etc just because the forum yingyangs start spouting off guesses
Last edited by TeamRX8; 03-02-2010 at 09:52 AM.
#4
The Angry Wheelchair
iTrader: (14)
He replaced his cat already from the dealer. First cat was switched out with a loaner which resulted in the car running normal again. Once the dealer put in a new cat after he was done with the loaner the problem was back again even though it was brand new
I would think that isolates it to just around that area causing the issue. Other than the O2 sensor what else is left Team that could cause an issue there? E-shaft is the only other possible culprit or is there more?
RIWWP: Did you get the CEL code looked up yet to narrow down what it reports?
I would think that isolates it to just around that area causing the issue. Other than the O2 sensor what else is left Team that could cause an issue there? E-shaft is the only other possible culprit or is there more?
RIWWP: Did you get the CEL code looked up yet to narrow down what it reports?
Last edited by Vlaze; 03-02-2010 at 10:05 AM.
#5
The Angry Wheelchair
iTrader: (14)
- Getting misfires back in December prior to my complete CAT failure
- Replaced Coils, plugs, wires, filter, cleaned MAF
- still issues, MPG drops to ~9mpg
- Determine cat failure
- remove cat install loaner midpipe (friend's pipe had his O2 sensor on it)
- back up to 22-24mpg, full power (plus some), no misfires
- dealer replaces cat end of January, using my old O2 sensor
- I get misfires again, mileage drops to ~17-19
- misfires continue, still puzzled like crazy, mileage keeps dropping and I am clearly running way too rich
- someone suggests an O2 sensor failure, as I wasn't aware that they were read/write interactive, rather than just read only for emissions
- If a sensor would have gotten damaged from the clogged cat failure, the rear sensor makes sense
#7
Registered
Thread Starter
iTrader: (2)
Join Date: Oct 2007
Location: Pacific Northwest
Posts: 16,684
Likes: 0
Received 253 Likes
on
110 Posts
The rear sensor has no impact on performance ie mileage, misfires, etc plus it will throw a CEL if bad, all it does is monitor cat discharge gases. You can pull it and run without it even, no impact.
you can't guess a solution, you need someone with the skills and equipment to properly diagnose the vehicle
wrt misfires, have you tried restting the e-shaft profile?
It almost sounds like a clogged cat or exhaust to me, but again it takes a qualified diagnosis to figure these things, don't go swapping parts etc just because the forum yingyangs start spouting off guesses
you can't guess a solution, you need someone with the skills and equipment to properly diagnose the vehicle
wrt misfires, have you tried restting the e-shaft profile?
It almost sounds like a clogged cat or exhaust to me, but again it takes a qualified diagnosis to figure these things, don't go swapping parts etc just because the forum yingyangs start spouting off guesses
I'm not a fan of guesses. Hence this thread. Anyone in the B@W thread can tell you how analytical I am
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
When the dealer replaced my cat, I imagine that they used my old O2 sensor, since it wasn't noted in the invoice ($0 final, under warranty).
I got the first misfire on the way home from the dealer the day of cat replacement.
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
First misfire was on the way back from the dealer after cat replacement. The misfire is always in high RPM, generally >8k, always under full WOT load or immediately as I lift prior to shifting. My mileage has also dropped to ~14-15mpg, which I believe to indicate that something isn't healthy.
I analyze the hell out of everything, and didn't think the O2 sensor was anything other than an emissions check, so wasn't considering it until last week. The only thing left otherwise that hasn't been replaced is the engine
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
#8
The Angry Wheelchair
iTrader: (14)
"The purpose of the front oxygen sensor, which is mounted before the catalytic converter, is to measure how rich or lean the gases are as the gases exit the combustion chambers. Depending upon whether the exhaust gas is lean (high in oxygen content) or rich (low in oxygen content), the amount of fuel entering the engine is adjusted by the engine management computer to try and maintain an ideal mixture that produces the lowest emissions output from the catalytic converter."
Quoted from one source. Sounds like rear is just a monitor whereas the front one is going to be the problem out of the 2 of them if it's bad. Since it should be in front of the converter then it was untouched during the swap and didn't influence the problem depending on what got removed. I haven't looked under the car in this area yet to see where precisely it is in the exhaust.
Quoted from one source. Sounds like rear is just a monitor whereas the front one is going to be the problem out of the 2 of them if it's bad. Since it should be in front of the converter then it was untouched during the swap and didn't influence the problem depending on what got removed. I haven't looked under the car in this area yet to see where precisely it is in the exhaust.
#10
"13B vs. Renesis" Discuss
iTrader: (28)

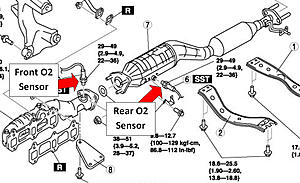

The front o2 is in the exhaust manifold, before the cat/mid pipe flange.
I guess it would be your front o2 sensor that needs replaced first. . .
So... if your front sensor is bad its causing your car to run rich, which is caused your first cat to fail. . . then with a midpipe, even though your were still running rich, it didn't effect you as much because your engine wasn't working to push all those exhaust gases through your cat.
Then, cat gets put back on, you're still running rich, but your cat isn't clogged, (yet) so your mpg drops back down. . .
Maybe???
I don't know, if it were me, I'd be shopping for a midpipe, but we also don't emissions testing in backwoods Ohio.
I guess it would be your front o2 sensor that needs replaced first. . .
So... if your front sensor is bad its causing your car to run rich, which is caused your first cat to fail. . . then with a midpipe, even though your were still running rich, it didn't effect you as much because your engine wasn't working to push all those exhaust gases through your cat.
Then, cat gets put back on, you're still running rich, but your cat isn't clogged, (yet) so your mpg drops back down. . .
Maybe???
I don't know, if it were me, I'd be shopping for a midpipe, but we also don't emissions testing in backwoods Ohio.
#12
The Angry Wheelchair
iTrader: (14)
We're just discussing the location and functionality of the 2 O2 sensors Team, we're not saying they are the culprit.
I asked in a previous response from your experience what else could be the problem when removing the cat and installing a mid pipe to eliminate it and the problem is gone and when reinstalling a cat, it's back again.
I asked in a previous response from your experience what else could be the problem when removing the cat and installing a mid pipe to eliminate it and the problem is gone and when reinstalling a cat, it's back again.
#13
Registered
Thread Starter
iTrader: (2)
Join Date: Oct 2007
Location: Pacific Northwest
Posts: 16,684
Likes: 0
Received 253 Likes
on
110 Posts
A midpipe is in my future at some point, but if I have a bad sensor, getting a midpipe won't fix that.
I am really just looking for a way of confirming which one is bad (without having to go through this and lots of out of pocket cash) with the dealer. I can replace both as well, it's an option, but as always, I am more interested in the WHY than I am in the solution.
The discussion, and challenges, is what I encourage here![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
Give your input openly Team, I value it. I refuse to take a single line of information and assume it's fact from anyone (including you
).
Heading out of the office for a couple hours, so won't be able to contribute for a bit.
I am really just looking for a way of confirming which one is bad (without having to go through this and lots of out of pocket cash) with the dealer. I can replace both as well, it's an option, but as always, I am more interested in the WHY than I am in the solution.
The discussion, and challenges, is what I encourage here
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
Give your input openly Team, I value it. I refuse to take a single line of information and assume it's fact from anyone (including you
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
Heading out of the office for a couple hours, so won't be able to contribute for a bit.
#15
Boosted Kiwi
iTrader: (2)
guess from a yingyang : front o2 sensor
I had one fail recently and this is what happened :
AFRs went all over the place in open loop , mostly lean in my case (per my wideband guage)
When I logged the o2 sensor (front) via scanalyser I found that it functioned normally for a while but when it got hot it would stop working and give a 14.7 flat line reading no matter what .
When you fitted your mates midpipe you didn't happen to disconnect the battery did you ?
FWIW I ran my (turbo) car with no o2 sensors connected at all for about a month while i waited for a new one . It ran fine .
I had one fail recently and this is what happened :
AFRs went all over the place in open loop , mostly lean in my case (per my wideband guage)
When I logged the o2 sensor (front) via scanalyser I found that it functioned normally for a while but when it got hot it would stop working and give a 14.7 flat line reading no matter what .
When you fitted your mates midpipe you didn't happen to disconnect the battery did you ?
FWIW I ran my (turbo) car with no o2 sensors connected at all for about a month while i waited for a new one . It ran fine .
Last edited by Brettus; 03-02-2010 at 02:03 PM.
#17
Registered
Thread Starter
iTrader: (2)
Join Date: Oct 2007
Location: Pacific Northwest
Posts: 16,684
Likes: 0
Received 253 Likes
on
110 Posts
guess from a yingyang : front o2 sensor
I had one fail recently and this is what happened :
AFRs went all over the place in open loop , mostly lean in my case (per my wideband guage)
When I logged the o2 sensor (front) via scanalyser I found that it functioned normally for a while but when it got hot it would stop working and give a 14.7 flat line reading no matter what .
When you fitted your mates midpipe you didn't happen to disconnect the battery did you ?
I had one fail recently and this is what happened :
AFRs went all over the place in open loop , mostly lean in my case (per my wideband guage)
When I logged the o2 sensor (front) via scanalyser I found that it functioned normally for a while but when it got hot it would stop working and give a 14.7 flat line reading no matter what .
When you fitted your mates midpipe you didn't happen to disconnect the battery did you ?
Looks like my original assumption about the rear sensor was incorrect, and it is the front sensor. (I might just order both). I guess when I had the midpipe, the heat buildup there was lower than with the cat (both new and clogged).
And yes, I did reset everything on my 8 installing the midpipe loaner.
See, this is why I made the thread. Challenge my assumptions!
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
#18
Registered
iTrader: (25)
you can run without either one, in the case of the front one it will default to open loop
in either case you should get a CEL if it doesn't operate as intended, even if the fault is internal
the only reason I said "have it your way" is because I've watched too many people swap out parts based on conjecture and just end up with a big hole in their wallet and the problem still not resolved i.e. "I might just order both"![Roll Eyes (Sarcastic)](https://www.rx8club.com/images/smilies/rolleyes.gif)
fwiw, it doesn't make sense. rather it's just what you wanted to hear
.
in either case you should get a CEL if it doesn't operate as intended, even if the fault is internal
the only reason I said "have it your way" is because I've watched too many people swap out parts based on conjecture and just end up with a big hole in their wallet and the problem still not resolved i.e. "I might just order both"
![Roll Eyes (Sarcastic)](https://www.rx8club.com/images/smilies/rolleyes.gif)
fwiw, it doesn't make sense. rather it's just what you wanted to hear
.
#19
Registered
Thread Starter
iTrader: (2)
Join Date: Oct 2007
Location: Pacific Northwest
Posts: 16,684
Likes: 0
Received 253 Likes
on
110 Posts
So what else might this be then? The only thing not addressed is the engine itself, which I agree is certainly a possibility. I can easily end up with a big hole in my wallet from taking it to a dealer for them to diagnose, potentially without any resolution at all for my money. The dealers in the area are general morons. Even that cat replacement I had to drive an hour and a half to a dealer that was willing to take my word for the problem.
I could burn money on conjecture and keep replacing ignition pieces, that are already new, but I don't see the wisdom in that at all.
I've got to spend money somehow to get this resolved, and until I do, the extra gas usage is spending it for me anyway
. If it isn't the ignition or O2 sensor, then the only thing left I am aware of that could be causing this is the engine itself, and due to other indications, I have trouble believing that my engine is failing.
Perhaps I am just not reading inflection and tone very well through written word, but if you have an idea about what this might be, but need further information to help pinpoint, ask away! I value your input quite a bit.
I could burn money on conjecture and keep replacing ignition pieces, that are already new, but I don't see the wisdom in that at all.
I've got to spend money somehow to get this resolved, and until I do, the extra gas usage is spending it for me anyway
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
Perhaps I am just not reading inflection and tone very well through written word, but if you have an idea about what this might be, but need further information to help pinpoint, ask away! I value your input quite a bit.
#20
The Angry Wheelchair
iTrader: (14)
I have a hard time believing you can run without the front O2 sensor, especially when it affects the fuel trim and if it's bad or you remove it will result in making the ECU guess the correct ratio.
Searching on this forum shows people who've had idling/mpg related issues until they replaced the front O2 sensor and the problem was resolved. But I'd at least wait until the scanner comes in to see what you can pick up RIWWP.
Searching on this forum shows people who've had idling/mpg related issues until they replaced the front O2 sensor and the problem was resolved. But I'd at least wait until the scanner comes in to see what you can pick up RIWWP.
#21
Boosted Kiwi
iTrader: (2)
It will run without the sensor - I have done it . All the sensor does is modify the fueling . What happens is the ECU gets stuck on whatever fuel trim it last made with the functioning sensor . Or if you reset the trims you get whatever the stock tune delivers without any trim .
#22
no agenda
iTrader: (2)
Great read.
I started out with a P0335 - Eccentric Shaft sensor problem a day before I had to go for my emission check.
AFR's all over the place.
Got things settled down and during the emission test car threw a P2270: Rear HOS2 stuck lean.
Car failed emission test.
Tech said likely the cat is toast, I tend to agree the exhaust is stinky. (RP High Flow cat)
Anyways I am in the process of putting the OEM cat back on but it had been suggested that my rear O2 sensor may need replacing as well.
So as an effort in enlightenment ... thanks everyone to the info in this thread.
I do have a question: Is there a way to visual inspect or using an ohm meter to test the O2 sensor?
My thread where all my troubles began:
https://www.rx8club.com/series-i-trouble-shooting-95/p0335-eccentric-shaft-position-sensor-circuit-problem-car-will-not-idle-194505/
I started out with a P0335 - Eccentric Shaft sensor problem a day before I had to go for my emission check.
AFR's all over the place.
Got things settled down and during the emission test car threw a P2270: Rear HOS2 stuck lean.
Car failed emission test.
Tech said likely the cat is toast, I tend to agree the exhaust is stinky. (RP High Flow cat)
Anyways I am in the process of putting the OEM cat back on but it had been suggested that my rear O2 sensor may need replacing as well.
So as an effort in enlightenment ... thanks everyone to the info in this thread.
I do have a question: Is there a way to visual inspect or using an ohm meter to test the O2 sensor?
My thread where all my troubles began:
https://www.rx8club.com/series-i-trouble-shooting-95/p0335-eccentric-shaft-position-sensor-circuit-problem-car-will-not-idle-194505/
#23
Registered
Thread Starter
iTrader: (2)
Join Date: Oct 2007
Location: Pacific Northwest
Posts: 16,684
Likes: 0
Received 253 Likes
on
110 Posts
I never ended up with a different answer on this.
My issue ended up being my compression was just garbage, found out yesterday. See the thread here:
https://www.rx8club.com/series-i-tech-garage-22/failing-compression-isnt-only-test-your-engine-needs-fail-194710/
My issue ended up being my compression was just garbage, found out yesterday. See the thread here:
https://www.rx8club.com/series-i-tech-garage-22/failing-compression-isnt-only-test-your-engine-needs-fail-194710/
#25
Registered User
Are the front and rear o2 sensors the same part number? I asked a guy at a autoparts store and he told me the front is called a air fuel ratio sensor and the rear is a o2 sensor. Is this true?
