strut backwards? s-techs
Hi All,
I have searched and found nothing relating to this particular issue.

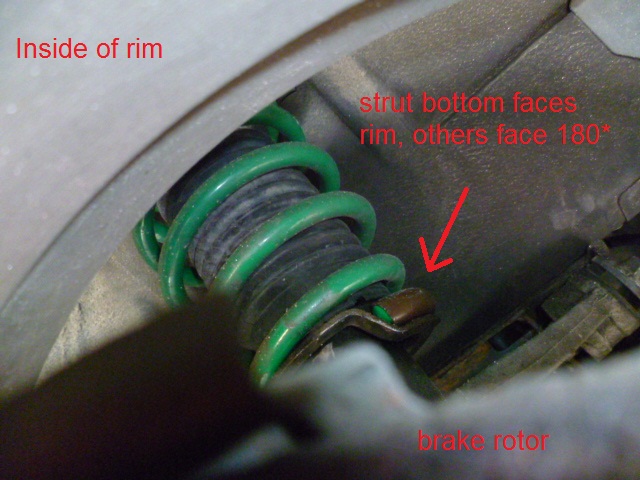

The issue is that i installed Tein s-techs on stock shocks; everything is sitting well except the passenger side front. I did everything to spec (cutbump stops etc.) even preloaded using a jack, but the passenger front is still 1/2" higher. I just noticed that the passenger front spring perch finishes facing out to the rim at the bottom, all the other 3 finish at the bottom facing in towards the car. maybe this is normal?
Driver front is 14" from the center of the hub to the fender
Passenger front is 14.5"
Has anyone encountered this problem before? I would just like some feedbackbefore I waste a Saturday morning for nothing. your help is greatly appreciated. It would be nice to get some information from someone who has encountered this before or knows that this is the problem.
thanks in advance.
I have searched and found nothing relating to this particular issue.
The issue is that i installed Tein s-techs on stock shocks; everything is sitting well except the passenger side front. I did everything to spec (cutbump stops etc.) even preloaded using a jack, but the passenger front is still 1/2" higher. I just noticed that the passenger front spring perch finishes facing out to the rim at the bottom, all the other 3 finish at the bottom facing in towards the car. maybe this is normal?
Driver front is 14" from the center of the hub to the fender
Passenger front is 14.5"
Has anyone encountered this problem before? I would just like some feedbackbefore I waste a Saturday morning for nothing. your help is greatly appreciated. It would be nice to get some information from someone who has encountered this before or knows that this is the problem.
thanks in advance.
Last edited by yurcivicsux; 11-06-2013 at 04:29 PM.
#5
Registered
Thread Starter
#6
SARX Legend
iTrader: (46)
There is no strut, it's a shock. And you did not preload on the ground so there is a chance you did it wrong with the jack method. The position of the perch is fine. But if it makes you feel better, spin it around. Did the spring fit in the indent of the rubber grommet on the top end? It should be obvious where the stock spring sat and then you line up the rest.
Last edited by 9krpmrx8; 06-28-2013 at 04:09 PM.
#7
Registered
Thread Starter
There is no strut, it's a shock. And you did not preload on the ground so there is a chance you did it wrong with the jack method. The position of the perch is fine. But if it makes you feel better, spin it around. Did the spring fit in the indent of the rubber grommet on the top end? It should be obvious where the stock spring sat and then you line up the rest.
