(video) Clutch pedal squeak

This happens when I depress my clutch pedal:

http://youtu.be/lo_ZQxVnHGU

Sometimes it will go away for weeks. After it rains (car is covered in parking deck) this squeak usually reappears. Then randomly it will go away. However, sometimes it will randomly come back. It has been on and off for years now and I'm so sick of it. Please advise...

Embarrassed,
FS
Old 06-05-2012 | 07:55 PM
  #2
Emery_'s Avatar
Zoomin'
iTrader: (8)

Joined: Oct 2011
Posts: 418
Likes: 0
From: Miami
I had this problem... When I first got my car I never noticed a squeaky pedal but after several months I began to notice it. It got really bad to the point that it squeaked every time I would push it, but sometimes it would go away. Sounded exactly like yours, so I went to Mazda and had my pedal replaced under warranty since I figured it must mean my pedal bracket is about to snap off. Even with the new pedal my clutch always squeaks when I press it during a cold start. But it goes away after the engine has warmed up. I really don't know what it is, but I feel your pain! I went through it as well. You should take it to Mazda and have them replace it under warranty if your still under 100k miles. With the squeaky sound alone they will replace it.
Old 06-05-2012 | 09:14 PM
  #3
Javii's Avatar
Registered
iTrader: (1)

Joined: Mar 2012
Posts: 156
Likes: 0
From: Houston, TX
Just add some WD-40 or Liquid Wrench NOT to the springs, but to the connection between the pedal and the pushrod locknut, it's that little tube that goes past the firewall. Just spray a little aiming from the firewall towards the pedal into that spot and it should fix it.
Old 06-05-2012 | 09:46 PM
  #4
Arca_ex's Avatar
BECAUSE RACECAR
iTrader: (10)

Joined: May 2011
Posts: 1,413
Likes: 8
From: Arizona
Mine started doing this about 1000 miles before it snapped.
Old 06-05-2012 | 10:02 PM
  #5
Emery_'s Avatar
Zoomin'
iTrader: (8)

Joined: Oct 2011
Posts: 418
Likes: 0
From: Miami
If he's tried lubricating it like he said he has, it might not make a difference lubing that tube. I know what you're talking about, I shot silicon oil all over my assembly and in and on that tube, and eventually I tried lithium grease. The silicon oil helped at first but eventually it went back to squeaking. The lithium grease didn't do much better, but you should try it either way. Could make a difference.
Old 06-06-2012 | 07:35 AM
  #6
fullsmoke's Avatar
Thread Starter
Anatomy of a corner...

Joined: Jan 2005
Posts: 536
Likes: 3
From: CT
I have lubed the parts you guys have described-it does not help. Upon close inspection there is no evidence the bracket is going to break.
Old 06-06-2012 | 07:41 AM
  #7
Z0oMzo0m's Avatar
Registered
iTrader: (4)

Joined: Jan 2008
Posts: 1,035
Likes: 2
From: PORT SAINT LUCIE, FL
im on same boat, doing it for XXXXX miles, lol.
Old 06-06-2012 | 08:38 AM
  #8
Javii's Avatar
Registered
iTrader: (1)

Joined: Mar 2012
Posts: 156
Likes: 0
From: Houston, TX
Weird, mine was making exactly that squeak and it's how it got fixed...

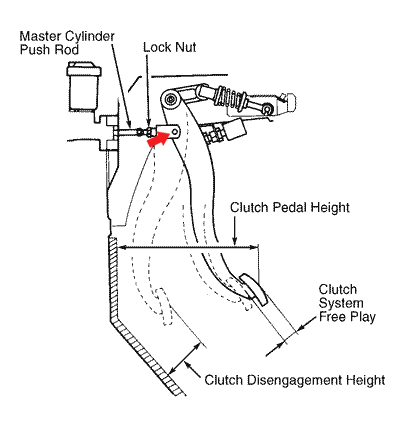

Arrow-pointed to avoid confusion, it's not the tube that has to get lubricated, it's the connection between the tube and the pedal.

Name:  jSr8q.png
Views: 320
Size:  342.3 KB

Name:  0wN6s.png
Views: 208
Size:  21.2 KB

(taken from RX7 but it's almost the same)

Last edited by Javii; 06-06-2012 at 08:41 AM.
Old 06-07-2012 | 06:46 AM
  #9
fullsmoke's Avatar
Thread Starter
Anatomy of a corner...

Joined: Jan 2005
Posts: 536
Likes: 3
From: CT
Very interesting-that same piece causes clicking noises for me. However, the squeaking sound seems to come from outside the cabin. I will try to lube that part-any particular lubricant you recommend?
Old 06-08-2012 | 09:06 AM
  #10
Javii's Avatar
Registered
iTrader: (1)

Joined: Mar 2012
Posts: 156
Likes: 0
From: Houston, TX
I've been using Liquid Wrench and it has worked perfectly, but I suppose WD-40 should do the same.
Old 06-08-2012 | 01:38 PM
  #11
RX.SANTANA.8's Avatar
Registered

Joined: Aug 2011
Posts: 11
Likes: 0
From: Atlanta, GA
I had the same issue a while back...i just sprayed some white lithium grease on it and left it over night..the next morning the noise went away and its stayed squeaky-free since then
Old 07-18-2012 | 08:40 PM
  #12
fullsmoke's Avatar
Thread Starter
Anatomy of a corner...

Joined: Jan 2005
Posts: 536
Likes: 3
From: CT
Still squeaky... Any other advice?
Old 07-18-2012 | 09:19 PM
  #13
Hesselrode's Avatar
US Navy Rotary Enthusiast
iTrader: (3)

Joined: Aug 2007
Posts: 1,062
Likes: 3
From: New Orleans, LA
Replace the pedal?
Old 07-18-2012 | 09:31 PM
  #14
Emery_'s Avatar
Zoomin'
iTrader: (8)

Joined: Oct 2011
Posts: 418
Likes: 0
From: Miami
Originally Posted by Hesselrode
Replace the pedal?
^ That or maybe it's some sort of clutch bearing?
Old 07-18-2012 | 10:11 PM
  #15
kompressorlogic's Avatar
Registered

Joined: Sep 2007
Posts: 133
Likes: 0
i have a new pedal,and aftr a while i had a sharp speak when id first press the pedeal very slightly, i greased that area , but noticed the problem was one of the bolts bolting the clutch pedal down had come loose! causing it to flex/slide slightly ( the top single bolt). that noise is gone,

but i have the same out of cabin noise as in the video still.

could be clutch pivot fork or something?

Last edited by kompressorlogic; 07-18-2012 at 10:17 PM.
Old 07-19-2012 | 04:34 PM
  #16
fullsmoke's Avatar
Thread Starter
Anatomy of a corner...

Joined: Jan 2005
Posts: 536
Likes: 3
From: CT
Originally Posted by Emery_
^ That or maybe it's some sort of clutch bearing?
This is what I was wondering... Is there anything that is part of the hydraulic system inside the tranny housing that could make this noise? Anyone with some insight?

FS
Old 07-07-2013 | 04:29 PM
  #17
Tsumayogi's Avatar
New Member

Joined: Apr 2008
Posts: 3
Likes: 0
Mine's been doing the same thing for a long time. It started intermittently but is now to the point where it happens nearly every time. Once in awhile it'll go away for a bit.

I checked it out last time I had my car jacked up and the noise seems to come from the top of the transmission where the clutch release cylinder is located. It's all covered by a rubber boot so I couldn't get a good look nor lube it up easily. I didn't have time to look in to it any more than that but I'm sure there's where the noise is coming from; not inside the cabin on any of the linkages there.

This link (CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION ) describes the steps required to remove the clutch release cylinder (from the service manual). My guess is that the end of the rod of the cylinder needs to be greased up. The link shows a grease icon on that ball end. I don't know if it would be possible to grease it without having to disconnect the slave cylinder and drain/bleed the fluid; that's just a pain.

If someone has some time to look in to this and report back that'd be great!
Old 03-21-2014 | 09:55 PM
  #18
EuroTech's Avatar
I like cheese!

Joined: Mar 2014
Posts: 153
Likes: 0
From: Marietta, GA
anyone ever figure this out as mine just started making noise and its definitely in the pedal area. i looked under the dash and didnt see anything obvious that was about to break
Old 03-22-2014 | 08:08 PM
  #19
EuroTech's Avatar
I like cheese!

Joined: Mar 2014
Posts: 153
Likes: 0
From: Marietta, GA
Originally Posted by Charles R. Hill
There are three pivot points for the pedal recoil spring, all of which have plastic bushings that wear out. In some cases, the bushing will wear out and the spring will start to wear through the clutch bracket, itself. Try lubricating the three pivot points.

It should also be noted that once the bushings start to squeak you may also be experiencing a parallel (but not causal) problem of pending clutch pedal breakage simply due to having more than 47K miles on the car/pedal assembly.
Ill try that tomorrow and look at the pivot points a little closer. Ill just run over to Mazmart since they're 15mins away and pickup a new pedal assy along with a right engine mount since mine seems weak

Last edited by EuroTech; 03-22-2014 at 08:11 PM.
Old 03-29-2014 | 05:16 PM
  #20
mobius911's Avatar
Registered

Joined: Feb 2008
Posts: 29
Likes: 0
From: SF
Are the plastic bushings for the ends of the clutch pedal spring available from Mazda or aftermarket? Mine are pretty much gone.
Old 12-21-2014 | 03:15 PM
  #21
spinstyle808's Avatar
Registered

Joined: Dec 2004
Posts: 13
Likes: 0
From: Deerfield Beach, FL
IT'S THE SPRING!!!!!!! WD40 on the spring above the pedal. Thats all!!
Old 08-06-2015 | 06:50 PM
  #22
exarkun's Avatar
Registered

Joined: May 2005
Posts: 36
Likes: 0
From: MN
Originally Posted by Javii

Mine has been making an annoying squeak and click lately and I finally figured out it was the same part as this.

On this diagram it is part 10, fork.

CLUTCH PEDAL REMOVAL/INSTALLATION

It really has a lot of play (can rotate it quite a bit clockwise and counter clockwise) Is that normal? When I press the clutch in, I can see it rotate slightly, then when I let up on the clutch it rotates back and hits the main clutch pedal piece that the pad is part of, making a loud click sound.

I also have a squeaking sound which I still cannot tell where it is coming from.
Old 08-19-2015 | 04:28 AM
  #23
ihatemyjob19's Avatar
New Member

Joined: Aug 2015
Posts: 1
Likes: 0
Originally Posted by EuroTech
Ill try that tomorrow and look at the pivot points a little closer. Ill just run over to Mazmart since they're 15mins away and pickup a new pedal assy along with a right engine mount since mine seems weak
What do I need to do if one of pivot point plastic bushings bust and my clutch spring is metal on metal on one side? I heard a loud pop and now that I put two-n-two together I think what I heard was that bushing busting...I checked the clutch all over and all the "faulty" points are good EXCEPT for the plastic bushing on the right side of the bracket. The pedal is stuck to the floor and I can only pull it back with my foot to its normal position?

Last edited by ihatemyjob19; 08-19-2015 at 04:35 AM.
