Brake system measurements

hola persons... I'm in the process of getting some custom wheels made and have been requested to get some certain measurements so that the wheels can be made... of course i could do this myself if i wasn't over 8000 miles away from my car... essentially i'm looking for someone who might have their car apart to see if they would be willing to take some measurements for me my car is a 2006 with the GT package and sport suspension with the slightly larger rear brakes... if anyone has this same model or close to similar and is willing to go out of their way to get these meaurements i can assure you that you would have a very grateful military member on your hands...

need measurements for front and rear please and thank you

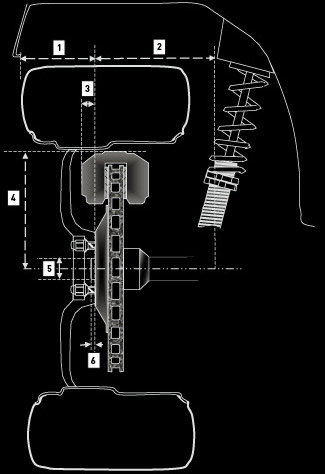

MEASUREMENT 1 : distance in centimeters from the inside of the bottom wheel well to the face of the brake rotor (the part that mounts to the hub not the braking surface)
MEASUREMENT 2 : the distance in centimeters from the face of the brake rotor to the inside wheel well where the coilovers mount to the chassis
MEASUREMENT 3 : the distance in millimeters from the outer most part of the caliper to the face of the brake rotor
MEASUREMENT 4 : the distance in centimeters from the top of the caliper to the center of the axel/ hub
MEASUREMENT 5 : center bore diameter in millimeters
MEASUREMENT 6 : the distance in millimeters that the center bore sticks out from the outer face of the brake rotor

hopefully the picture loaded so you can see exactly what i'm asking..

again any help on this would be awesome and i would be very very appreciative
Attached Thumbnails Brake system measurements-wheel_fitment_diagram.jpg
Old 04-19-2013 | 02:26 AM
  #2
monchie's Avatar
I HATE SPEEDBUMPS!

Joined: Nov 2007
Posts: 8,549
Likes: 7
From: Las Vegas, NV
Ask the Mazda engineers...
