How's Everyones Goodridge Brake Lines?

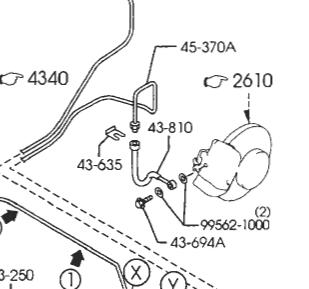

Any trouble with the c-clips breaking? How about the extra line length, any trouble with rubbing on suspension components?

I'm not real warm and fuzzy with mine. I had a clip break, (43-635 OEM Version), and the extra length has me a little worried.

Attached Thumbnails How's Everyones Goodridge Brake Lines?-capture1.jpg

Last edited by Nemesis8; 03-28-2006 at 03:22 PM.
Old 03-28-2006 | 03:59 PM
  #2
TeamRX8's Avatar
Registered
iTrader: (25)

Joined: Apr 2005
Posts: 26,869
Likes: 2,083
I was just going to PM Dannobre about how he installed his with the RacingBrake BBK. The front hoses are quite a bit longer than the OE ones. Find it hard to believe the clip broke though. Isn't it identical to the OE one, just new replacement parts?
Old 03-28-2006 | 04:18 PM
  #3
Nemesis8's Avatar
Thread Starter
Bigus Rotus
iTrader: (3)

Joined: Jun 2004
Posts: 8,573
Likes: 1
From: Missouri
The Goodridge clip is a different material, looks copper in color. I replaced it with the original OEM 43-635 clip, and might replace the other ones also. I think I have moved the front lines 3 or 4 times now trying to find the right spot so they miss hitting everything by loosening the clamp in the middle and pulling the lines back and forth. Maybe that's why the Mazdaspeed lines mimic the OEM rubber lines with a two line front. Dan mentioned a zip tie maybe to hold them to something, but I don't like that.
Old 03-28-2006 | 06:03 PM
  #4
TeamRX8's Avatar
Registered
iTrader: (25)

Joined: Apr 2005
Posts: 26,869
Likes: 2,083
the clips are just yellow zinc plated
Old 03-28-2006 | 08:11 PM
  #5
dannobre's Avatar
Modulated Moderator
iTrader: (3)

Joined: Feb 2004
Posts: 13,719
Likes: 338
From: Smallville
I used the OEM clips...they are easier to install and stay in better. The lines are long...and the retainer clamp has the wrong sized hole in it and needs to be drilled out.

I zip tied them out of the way...they work OK. Should be shorter though...with better retaining clamp

The better alternative is the MS ones...but they are $450....so they should be
Old 03-28-2006 | 08:26 PM
  #6
Nemesis8's Avatar
Thread Starter
Bigus Rotus
iTrader: (3)

Joined: Jun 2004
Posts: 8,573
Likes: 1
From: Missouri
I can't see zip tieing my sports car
Old 03-28-2006 | 08:36 PM
  #7
dannobre's Avatar
Modulated Moderator
iTrader: (3)

Joined: Feb 2004
Posts: 13,719
Likes: 338
From: Smallville
*****
Old 03-28-2006 | 08:42 PM
  #8
Nemesis8's Avatar
Thread Starter
Bigus Rotus
iTrader: (3)

Joined: Jun 2004
Posts: 8,573
Likes: 1
From: Missouri
That's almost as bad as 200 MPH tape
Old 03-28-2006 | 08:44 PM
  #9
dannobre's Avatar
Modulated Moderator
iTrader: (3)

Joined: Feb 2004
Posts: 13,719
Likes: 338
From: Smallville
No good racer travels without zip ties and gaffers (duct) tape
Old 03-29-2006 | 01:10 AM
  #10
Nemesis8's Avatar
Thread Starter
Bigus Rotus
iTrader: (3)

Joined: Jun 2004
Posts: 8,573
Likes: 1
From: Missouri
OK, I need to know how many are runnning these on the track. Just the three of us? Sounds like a freakin song or something...
Old 03-29-2006 | 01:38 PM
  #11
HooDoo's Avatar
Registered

Joined: Nov 2005
Posts: 14
Likes: 0
From: Ventura, CA
My Goodridge Brake lines came with the RacingBrake BBK and installed by a mechanic. If there had been any install issues, my mechanic would let me know, (see brake thread below) he loves to wine and point out other’s shortfalls, then he gets the job done. If zips for install had been required, he would have been ALL over that! He did not install Brake lines on rear OEM brakes as he was concerned about too much pressure to the rear offsetting the car balance under high speed braking at the Track. Probably not an issue, but … Flawless at Laguna Seca, Streets of Willow next.
https://www.rx8club.com/series-i-wheels-tires-brakes-suspension-55/racingbrake-bbk-vs-oem-stock-brake-85934/
Old 03-29-2006 | 01:48 PM
  #12
Nemesis8's Avatar
Thread Starter
Bigus Rotus
iTrader: (3)

Joined: Jun 2004
Posts: 8,573
Likes: 1
From: Missouri
Thanks - I have the Racing Brake Sport Rotors with the OEM calipers and Hawk HPS pads on. The front lines for the Goodridge need to be watched for rubbing after your track days.
Old 03-29-2006 | 01:53 PM
  #13
expo1's Avatar
He's as bad as Can

Joined: Feb 2004
Posts: 4,309
Likes: 2
From: Manchester, NJ
Originally Posted by Nemesis8
OK, I need to know how many are runnning these on the track. Just the three of us? Sounds like a freakin song or something...
I have had them on for almost a year and put about 30,000 miles & 15 hours of track time on them without any issues.
Old 03-29-2006 | 02:56 PM
  #14
Nemesis8's Avatar
Thread Starter
Bigus Rotus
iTrader: (3)

Joined: Jun 2004
Posts: 8,573
Likes: 1
From: Missouri
That's what I was looking for. Thanks
Old 03-29-2006 | 03:49 PM
  #15
TeamRX8's Avatar
Registered
iTrader: (25)

Joined: Apr 2005
Posts: 26,869
Likes: 2,083
Originally Posted by HooDoo
He did not install Brake lines on rear OEM brakes as he was concerned about too much pressure to the rear offsetting the car balance under high speed braking at the Track. Probably not an issue, [/url]

It's not, he should have installed them.
Old 03-29-2006 | 10:38 PM
  #16
dannobre's Avatar
Modulated Moderator
iTrader: (3)

Joined: Feb 2004
Posts: 13,719
Likes: 338
From: Smallville
^^ wonder where he got that theory...the rears are so short that even if the stock hoses are expanding 10% the volume would be negligible

As for the fronts..they are long...but they probably wouldn't rub on the stock 8" wheels.....they do pose a problem with 9.5" wheels though
Old 03-30-2006 | 03:51 PM
  #17
expo1's Avatar
He's as bad as Can

Joined: Feb 2004
Posts: 4,309
Likes: 2
From: Manchester, NJ

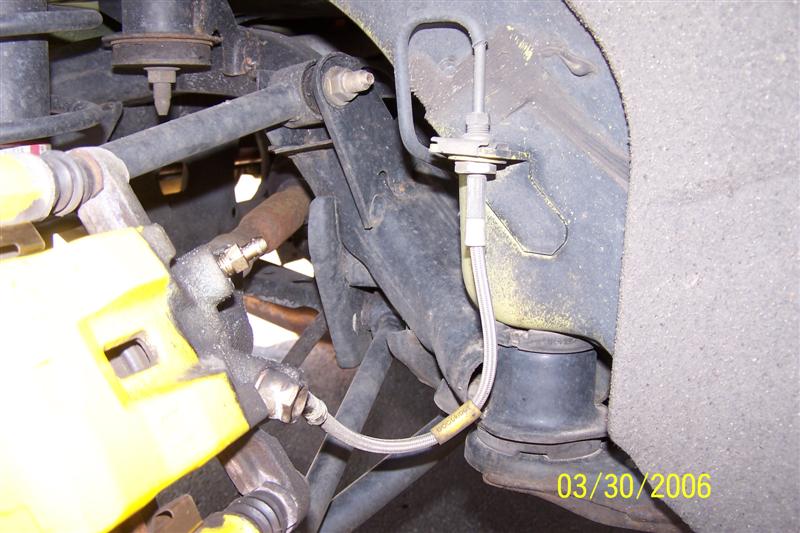

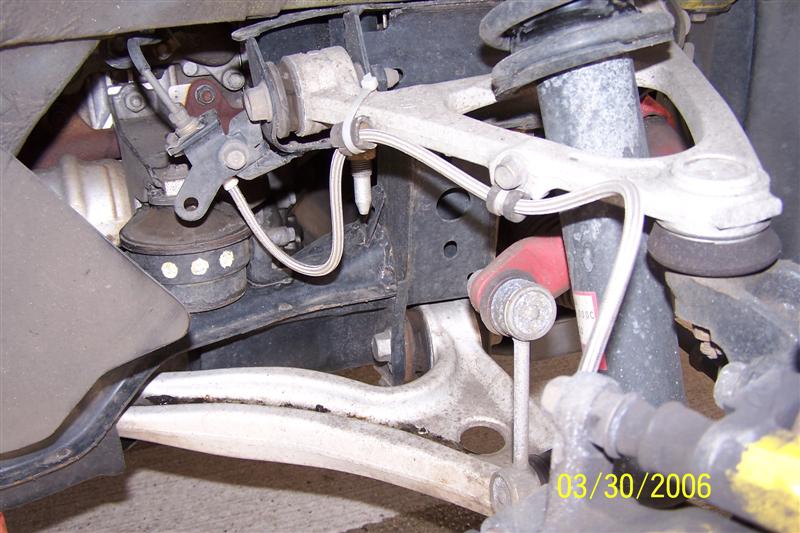

Put on the summer tires today so I took some photos of how my Goodridge lines are looking after alomost 30,000 miles and some track time. As you can see I did use zip ties on the front to keep them from rubbing.
Attached Thumbnails How's Everyones Goodridge Brake Lines?-100_3342.jpg   How's Everyones Goodridge Brake Lines?-100_3343.jpg
Old 03-30-2006 | 03:58 PM
  #18
Nemesis8's Avatar
Thread Starter
Bigus Rotus
iTrader: (3)

Joined: Jun 2004
Posts: 8,573
Likes: 1
From: Missouri
Yep - that looks like where they need it.
Old 03-31-2006 | 02:06 PM
  #19
TeamRX8's Avatar
Registered
iTrader: (25)

Joined: Apr 2005
Posts: 26,869
Likes: 2,083
I suspect they just took a similar existing application that's a bit longer and just slapped it into a box marked Mazda RX-8
Old 04-02-2006 | 04:02 AM
  #20
TeamRX8's Avatar
Registered
iTrader: (25)

Joined: Apr 2005
Posts: 26,869
Likes: 2,083
well I got mine mounted tonight along the with the RacingBrake front BBK and rear rotors and figured it out for the front brake lines, all the slack is suppose to go to the back, it forms a loop that lines up with the opening in the rear control arm between the two suspension bushing mounts. I'll try to get a pic tomorrow

what a PITA though, I hate f'ing with brake lines and hate f'ing with brake fluid even more than that, good thing nobody was around to hear my long tirade of epithets yelled out with extreme emphasis .... I still have to bleed and flush it all tomorrow, ugh

Last edited by TeamRX8; 04-02-2006 at 04:04 AM.
Old 04-02-2006 | 01:29 PM
  #21
Nemesis8's Avatar
Thread Starter
Bigus Rotus
iTrader: (3)

Joined: Jun 2004
Posts: 8,573
Likes: 1
From: Missouri
Yep, thats where I put my slack also - and your right, it's a PITA for sure. I'm hitting my auto headlight leveler a little, so that's where I am watching.
Old 04-02-2006 | 03:06 PM
  #22
TeamRX8's Avatar
Registered
iTrader: (25)

Joined: Apr 2005
Posts: 26,869
Likes: 2,083
ah, I have a Base model so that never occured to me
Old 04-03-2006 | 01:28 AM
  #23
TeamRX8's Avatar
Registered
iTrader: (25)

Joined: Apr 2005
Posts: 26,869
Likes: 2,083
As promised, here are the pics with some notes to make the process easier to understand for anyone else who purchases the Goodridge hoses separately or the RacingBrake BBK that includes them.

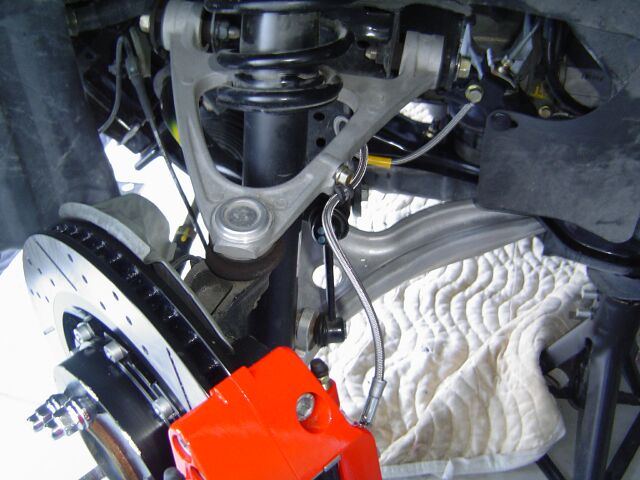

First picture below is with the steering turned full lock to swing the front of the wheel assembly full inboard. This is the position you need to have spindle assembly in when tightening the clamp because this is where the hose is stretched the longest. Make sure the hose is in a relaxed, unstretched position, then tighten the clamp. Prior to this the clamp needs to have it's 1/4" hole drilled out to 5/16" to reuse the OE positioning bolt. Goodrich does not provide the proper size. Note that the clamp needs to be positioned downward to provide clearance between the hose and the upper control arm:

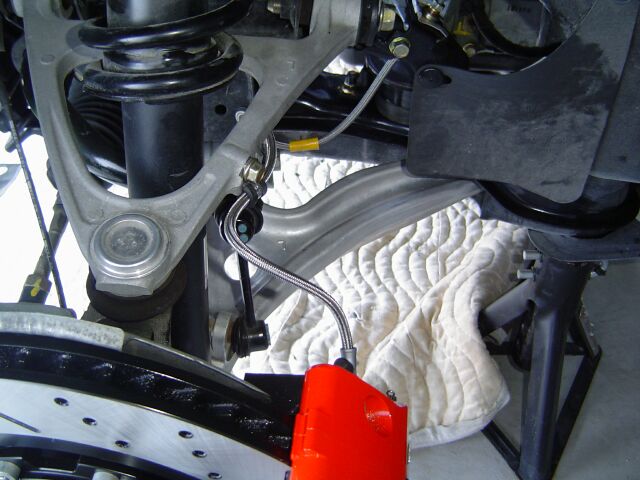

Next picture is with the spindle turned to the straight ahead position. Nice and neat.

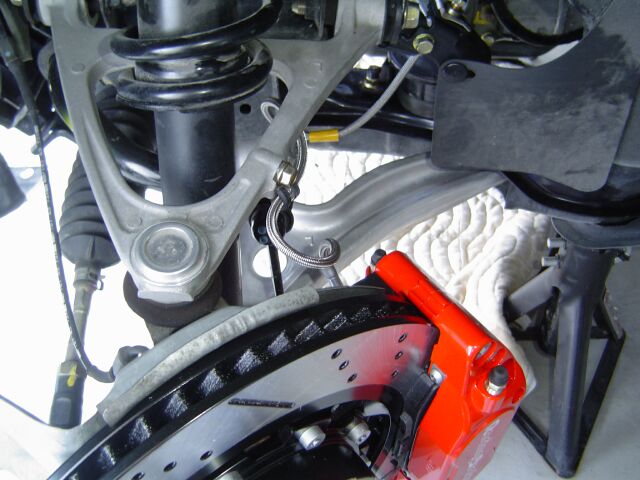

Last picture is with the steering turned full lock to swing the rear of the wheel full inboard. Note everything clears nice, all bends are smooth, etc. You are ready to bleed the front brakes now.

Attached Thumbnails How's Everyones Goodridge Brake Lines?-dsc00915.jpg   How's Everyones Goodridge Brake Lines?-dsc00913.jpg   How's Everyones Goodridge Brake Lines?-dsc00911.jpg

Last edited by TeamRX8; 04-03-2006 at 01:35 AM.
Old 11-03-2006 | 01:32 PM
  #24
bikes2cars's Avatar
oooh. shiny.

Joined: Oct 2006
Posts: 34
Likes: 0
From: Rancho Cucamonga, CA
Sad to say, but I zip-tied my lines in place. I put 3 zip-ties on each side. I tied the lines to the A-fram control arm. At full turn, left or right, the lines were rubbing against the insides of my rims and against the backs of my rotors. Any suggestions to clamp it down w/o using zip-ties or drilling?

Last edited by bikes2cars; 11-03-2006 at 01:46 PM.
Old 11-03-2006 | 08:20 PM
  #25
dannobre's Avatar
Modulated Moderator
iTrader: (3)

Joined: Feb 2004
Posts: 13,719
Likes: 338
From: Smallville
I used one large zip.....and have had no problems at all. Maybe you made them too tight. Just loop them to hold them in a bit...not tight
