OEM Wheel Widening
#1
Registered User
Thread Starter
Join Date: Jul 2009
Location: Canada, UAE, Philippines.
Posts: 205
Likes: 0
Received 0 Likes
on
0 Posts
OEM Wheel Widening
Along with my project located https://www.rx8club.com/series-i-major-horsepower-upgrades-93/rear-fi-daily-driver-project-187851/
now i need to find 2 used rims for the test of cutting out the backside and adding 25mm or more to have the factory wheels hold larger rubber..
but shipping two nice rims out to here may be more then i can bargan for...
ill see if i can find my oem rims from the wreaked one in 2007 but i doubt it.
i may have to sacrifice my own wheels.
or go even more expensive and buy 4 and send them to either of the following (rating heighest to lowest)
http://www.weldcraftwheels.com/
http://www.ericvaughnmachine.com/
http://www.elitewheelcompany.co.nz/
http://www.vikingwheel.com/
http://www.stocktonwheel.com/wheel_widening.htm
http://www.fixrim.com/
then send them to me for final fitment -grrr- if i had hair id pull it out...
if anyone requires this information or know of any other decent locations for the widenening please feel free to post here.
and the specialists can probibly answer this question.![Dunno](https://www.rx8club.com/images/smilies/dunno.gif)
if i have an unlowered (oem hight) with oem wheels with a +25mm spacer how much can i add to the oem rim before clearances are an issue? (obiously more then 25mm) basically i wanna fit 275-295s where-ever i can.
now i need to find 2 used rims for the test of cutting out the backside and adding 25mm or more to have the factory wheels hold larger rubber..
but shipping two nice rims out to here may be more then i can bargan for...
ill see if i can find my oem rims from the wreaked one in 2007 but i doubt it.
i may have to sacrifice my own wheels.
or go even more expensive and buy 4 and send them to either of the following (rating heighest to lowest)
http://www.weldcraftwheels.com/
http://www.ericvaughnmachine.com/
http://www.elitewheelcompany.co.nz/
http://www.vikingwheel.com/
http://www.stocktonwheel.com/wheel_widening.htm
http://www.fixrim.com/
then send them to me for final fitment -grrr- if i had hair id pull it out...
if anyone requires this information or know of any other decent locations for the widenening please feel free to post here.
and the specialists can probibly answer this question.
![Dunno](https://www.rx8club.com/images/smilies/dunno.gif)
if i have an unlowered (oem hight) with oem wheels with a +25mm spacer how much can i add to the oem rim before clearances are an issue? (obiously more then 25mm) basically i wanna fit 275-295s where-ever i can.
![EEK!](https://www.rx8club.com/images/smilies/eek.gif)
Last edited by Talic; 12-18-2009 at 11:10 PM.
#2
What am I doing here?
Join Date: Mar 2006
Location: 2017 Miata RF Launch Edition
Posts: 3,606
Received 649 Likes
on
510 Posts
There are guys fitting 295 Hoosier A6's and Kumho V710's on the OEM rims. Granted, their installers hate them, but they didn't have to do anything special to the structure of the wheels to do it.
#4
Registered User
Thread Starter
Join Date: Jul 2009
Location: Canada, UAE, Philippines.
Posts: 205
Likes: 0
Received 0 Likes
on
0 Posts
agreed, no tread width should be more then 10% wider than the rim or the vehicle will have a floating feeling and sidewall movement will make it very interesting in turns.
the oem rim should not have anything more then a 245
the oem rim should not have anything more then a 245
#5
OK so I'm not sure if your question has been answered yet but I believe you are looking for this response:
Stock Wheel 18x8 +50
Personally I think a 285/30 is probably the maximum you can do under the stock rolled fenders but I could be wrong. Regardless you want a 10" wide wheel to optimize that tire section width.
So you need to add 2" to your stock 8" wheel = 10". These companies can obviously only add to the inner barrel of the wheel so you're increasing offset dramatically. Once they add those 2" to your wheel you will end up with a
18x10 +75 offset
Now you want to get that back to the +45 area with that tire size. So you would need a
30mm spacer ideally.
I PERSONALLY DON'T THINK IT'S WORTH IT. I can get you some much lighter wheel setup that doesn't require 2lb spacers to acheive what you want for around $1300.00.
Am I missing something, why would you want to end up with an inferior wheel that's gonna end up real heavy when there are lightweight options at the same cost?
RIshie
Stock Wheel 18x8 +50
Personally I think a 285/30 is probably the maximum you can do under the stock rolled fenders but I could be wrong. Regardless you want a 10" wide wheel to optimize that tire section width.
So you need to add 2" to your stock 8" wheel = 10". These companies can obviously only add to the inner barrel of the wheel so you're increasing offset dramatically. Once they add those 2" to your wheel you will end up with a
18x10 +75 offset
Now you want to get that back to the +45 area with that tire size. So you would need a
30mm spacer ideally.
I PERSONALLY DON'T THINK IT'S WORTH IT. I can get you some much lighter wheel setup that doesn't require 2lb spacers to acheive what you want for around $1300.00.
Am I missing something, why would you want to end up with an inferior wheel that's gonna end up real heavy when there are lightweight options at the same cost?
RIshie
#9
Ngo is ABSOLUTELY CORRECT.
COMMON MISCALCULATION AND WHY I GUESS I HAVE A JOB, thanks GOd.
So Offset is always measured from the CENTERLINE OF THE WHEEL = +0 offset.
For arbitrary purposes we'll say:
18x8 +50 has 2" Front spacing and 6" backspacing.
Now we add 2" of backspacing to get 10".
2" FS
8" BS
Centerline is at 5". That's 3" difference ~ 75mm.
Rishie
COMMON MISCALCULATION AND WHY I GUESS I HAVE A JOB, thanks GOd.
So Offset is always measured from the CENTERLINE OF THE WHEEL = +0 offset.
For arbitrary purposes we'll say:
18x8 +50 has 2" Front spacing and 6" backspacing.
Now we add 2" of backspacing to get 10".
2" FS
8" BS
Centerline is at 5". That's 3" difference ~ 75mm.
Rishie
#11
No apologies are needed sir, nobody learns how its done unless questions are asked. As long as everyone walks away on the same page we might just be able to save another wheel fitment's life.
Rishie
Rishie
#12
If we really wanted to complicate things more: hehe.
A 8" wide wheel is actually 9" wide from edge to edge, total spacing.
10" is 11" Wide in total spacing. You see the pattern.
This can become a problem when people are actually "DERIVING" their fitment from "SCRATCH".
The laymen would measure inside of fender to inner most part of the vehicle and assume, OH i have 10" of room so I can get a 10" wide wheel and then begin determining offset.
The problem is when he gets his 10" wheel and it's actually 11" wide from outer edge to outer edge, he will end up using a half inch spacer. I've seen this happen many times.
Rishie
A 8" wide wheel is actually 9" wide from edge to edge, total spacing.
10" is 11" Wide in total spacing. You see the pattern.
This can become a problem when people are actually "DERIVING" their fitment from "SCRATCH".
The laymen would measure inside of fender to inner most part of the vehicle and assume, OH i have 10" of room so I can get a 10" wide wheel and then begin determining offset.
The problem is when he gets his 10" wheel and it's actually 11" wide from outer edge to outer edge, he will end up using a half inch spacer. I've seen this happen many times.
Rishie
#13
OH AND I'VE SEEN WELDCRAFT NOT MAKE ALL THE WHEELS THE SAME WIDTH SO MAKE SURE YOU ARE VERY EXPLICIT.
SAY HOW MUCH MORE MATERIAL YOU WANT ADDED, NEVER HOW WIDE YOU WANT THE WHEEL TO BE IN THE END. THIS IS DUE TO WHAT I STATED ABOVE.
If you know your wheel is 8" and you want a 10" wide wheel you must ask for 2" of more material or barrel OR Say you want a wheel with 11" of TOTAL SPACING from outer to outer edge.
Rishie
SAY HOW MUCH MORE MATERIAL YOU WANT ADDED, NEVER HOW WIDE YOU WANT THE WHEEL TO BE IN THE END. THIS IS DUE TO WHAT I STATED ABOVE.
If you know your wheel is 8" and you want a 10" wide wheel you must ask for 2" of more material or barrel OR Say you want a wheel with 11" of TOTAL SPACING from outer to outer edge.
Rishie
#14
Registered User
Thread Starter
Join Date: Jul 2009
Location: Canada, UAE, Philippines.
Posts: 205
Likes: 0
Received 0 Likes
on
0 Posts

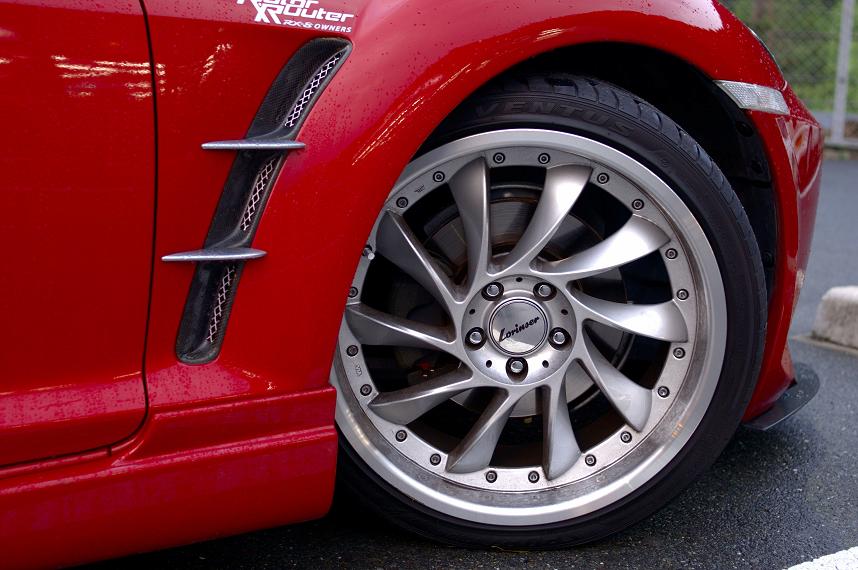

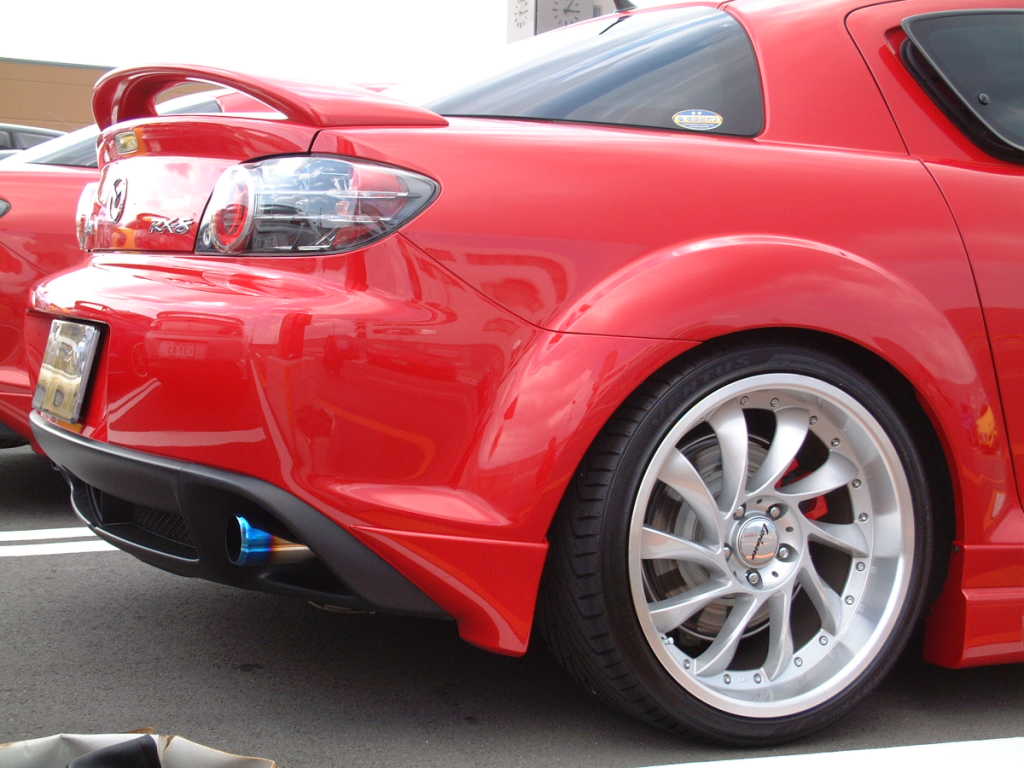

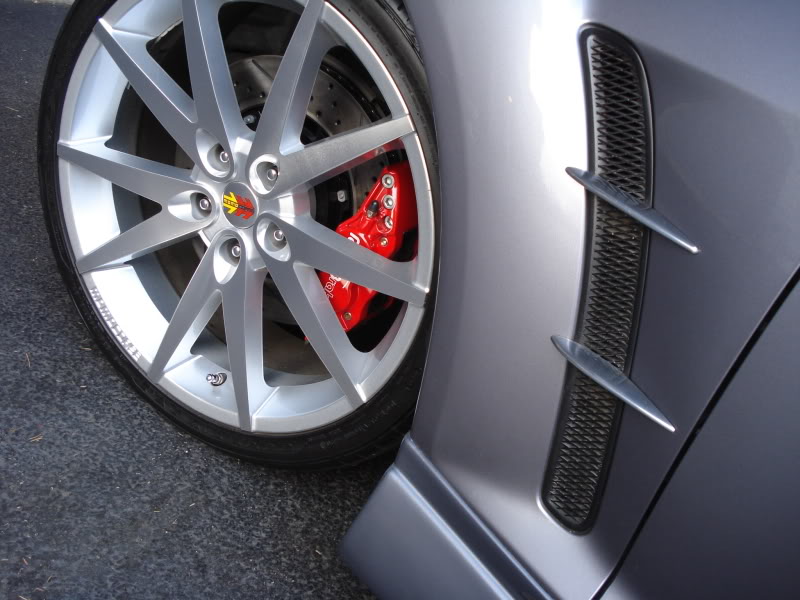

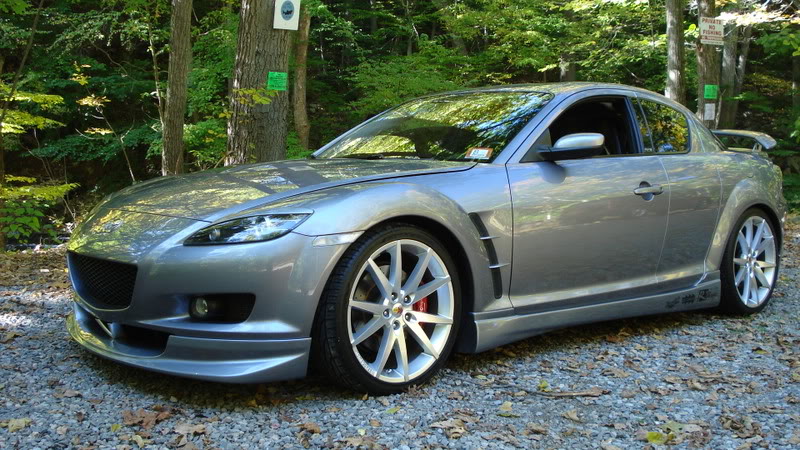

the reason being that the only wheels i like for the rx8 are the oems, momo v10s and lorinsers lm6 (see attached)
yet all of these are 8 to 8.5 wide to my understanding
and 19/20 will be wreaked in the uae ina day
plus shipping costs would make the rims cost over 3k each (for the lorinser)
yet all of these are 8 to 8.5 wide to my understanding
and 19/20 will be wreaked in the uae ina day
plus shipping costs would make the rims cost over 3k each (for the lorinser)
#16
Registered User
Thread Starter
Join Date: Jul 2009
Location: Canada, UAE, Philippines.
Posts: 205
Likes: 0
Received 0 Likes
on
0 Posts
no i havent yet.
ive been running around too much, kids, kids school, relocating near to the kids school.
and too much over time at work.
give me the details and ill probibly end up sending them out.
ill probibly discuss with them weight reduction ideas like drilling out some of the oem material thats not needed etc.
ive been running around too much, kids, kids school, relocating near to the kids school.
and too much over time at work.
give me the details and ill probibly end up sending them out.
ill probibly discuss with them weight reduction ideas like drilling out some of the oem material thats not needed etc.
#19
Registered Toker
iTrader: (2)
the reason being that the only wheels i like for the rx8 are the oems, momo v10s and lorinsers lm6 (see attached)
yet all of these are 8 to 8.5 wide to my understanding
and 19/20 will be wreaked in the uae ina day
plus shipping costs would make the rims cost over 3k each (for the lorinser)
yet all of these are 8 to 8.5 wide to my understanding
and 19/20 will be wreaked in the uae ina day
plus shipping costs would make the rims cost over 3k each (for the lorinser)
