Will It Fit Thread
Charles Bundy
iTrader: (5)
I thought 25.4 mm is an inch
and the side wall of a 255/35 tire is not the same height as a 245/40 tire. I just posted these same pictures below of my tires above!
245/40-18
![](https://fbcdn-photos-h-a.akamaihd.net/hphotos-ak-xpf1/t1.0-0/s720x720/10376296_4441724577873_2702388273035799584_n.jpg)
255/35-18
![Dunno](https://www.rx8club.com/images/smilies/dunno.gif)
245/40-18
![](https://fbcdn-photos-h-a.akamaihd.net/hphotos-ak-xpf1/t1.0-0/s720x720/10376296_4441724577873_2702388273035799584_n.jpg)
255/35-18
![](https://scontent-b-lax.xx.fbcdn.net/hphotos-xpf1/t1.0-9/s720x720/10441376_4452625890399_99211520505354426_n.jpg)
Last edited by Grace_Excel; 07-10-2014 at 03:54 PM. Reason: Added pictures
Legend In My Own Mind
You can look at a manufacturer's website or even something like Tirerack and see charts with actual height, width, and even the number of rotations per mile since every brand sizing is slightly different. For example, the Hankooks I bought list:
225/45r18= 25.9" tall and 801 revs per mile
245/40r18= 25.7" tall and 808 rpm
255/35r18= 25" tall and 831 rpm
255/40r18= 26" tall and 798 rpm
I'm guessing the height is just rounded to one decimal. A 255/35 or even a 265/35 is a really short tire and the weight ratings are a few hundred pounds lower per tire due to less air volume. Also remember that more air volume helps dissipate heat and tires will last longer.
225/45r18= 25.9" tall and 801 revs per mile
245/40r18= 25.7" tall and 808 rpm
255/35r18= 25" tall and 831 rpm
255/40r18= 26" tall and 798 rpm
I'm guessing the height is just rounded to one decimal. A 255/35 or even a 265/35 is a really short tire and the weight ratings are a few hundred pounds lower per tire due to less air volume. Also remember that more air volume helps dissipate heat and tires will last longer.
Zoom Zoom Boom
iTrader: (5)
18x9.5 +27 wrapped in 255/40/18 tires all around.
Lowered on Progress Technology springs and Koni Yellows.
I'm pretty sure I can fit the rears with the fenders rolled, but I'm more concerned with the fronts.
Posted From RX8Club.com Android App
Lowered on Progress Technology springs and Koni Yellows.
I'm pretty sure I can fit the rears with the fenders rolled, but I'm more concerned with the fronts.
Posted From RX8Club.com Android App
Charles Bundy
iTrader: (5)
I think you'll be okay without rolling your fenders. It is not much thicker than what I currently have, the high offset will make up for the wider tires.
Charles Bundy
iTrader: (5)
Zoom Zoom Boom
iTrader: (5)
Yup, I really hope someone grabs them soon so I can at least get somewhat close to breaking even. I ended up going for 18x9.5 +27 Enkei NT03 in SBC finish.
Getting the fender roller and heat gun ready and it seems like I'm going to need to shave a bumper tab off as well... Seriously doesn't help having 255/40 tires; what a stupid mistake on buying them in the first place.![Icon No2](https://www.rx8club.com/images/smilies/icon_no2.gif)
P.S. Loving the drop on those RS*R springs. Can't wait to see them next time I roll by at the FT86 meet.
Getting the fender roller and heat gun ready and it seems like I'm going to need to shave a bumper tab off as well... Seriously doesn't help having 255/40 tires; what a stupid mistake on buying them in the first place.
![Icon No2](https://www.rx8club.com/images/smilies/icon_no2.gif)
P.S. Loving the drop on those RS*R springs. Can't wait to see them next time I roll by at the FT86 meet.
Last edited by Jazzmeson; 07-15-2014 at 12:54 AM.
Charles Bundy
iTrader: (5)
Yup, I really hope someone grabs them soon so I can at least get somewhat close to breaking even. I ended up going for 18x9.5 +27 Enkei NT03 in SBC finish.
Getting the fender roller and heat gun ready and it seems like I'm going to need to shave a bumper tab off as well... Seriously doesn't help having 255/40 tires; what a stupid mistake on buying them in the first place.![Icon No2](https://www.rx8club.com/images/smilies/icon_no2.gif)
P.S. Loving the drop on those RS*R springs. Can't wait to see them next time I roll by at the FT86 meet.
Getting the fender roller and heat gun ready and it seems like I'm going to need to shave a bumper tab off as well... Seriously doesn't help having 255/40 tires; what a stupid mistake on buying them in the first place.
![Icon No2](https://www.rx8club.com/images/smilies/icon_no2.gif)
P.S. Loving the drop on those RS*R springs. Can't wait to see them next time I roll by at the FT86 meet.
Zoom Zoom Boom
iTrader: (5)
I liked them for a while, but I eventually got bored of them and wanted to get wider wheels since I finally lowered the car by a slightly decent amount. The NT03s are perfect since they are available in SBC and are reasonably priced. I believe there is a higher offset, but only for the silver version of the wheel.
Zoom Zoom Boom
iTrader: (5)
How much are you lowered? My current set of wheels are 18x9 +38 and lowered 1.7" F and 1.3" R. The rear tucks a tad bit while the fronts are flush with the fender.
Posted From RX8Club.com Android App
Posted From RX8Club.com Android App
Noob question.. I'm currently running 17x9 +12s on 235/40 tires - lowered about an inch on a KYB/Eibach combo.
I have an opportunity to grab some 18x9.5 +12 gramlights - Does anyone know what tire I would want to run to make this fit? Looking for that flush with the fender stance :D
I have an opportunity to grab some 18x9.5 +12 gramlights - Does anyone know what tire I would want to run to make this fit? Looking for that flush with the fender stance :D
Registered
OK.
Got my TEIN S.TECH springs installed today (along with the stock cat since I'm moving to Cali in like 10 weeks).
My car barely seems to sit any lower at all in the rear. I had a full car with two large people in the back about 2 weeks ago, and I think they sorta squashed down the struts or whatever because it started rubbing pretty bad over the last 2 weeks after that. When they were in it, I couldn't even go around a gentle curve without constant rubbing on the outward-side of the car, it was horrible and embarrassing.
The front is noticeably dropped - it never had any rubbing issues, and thankfully still doesn't.
The rear sits at almost the same level it did before, but immediately rubbed the fenders a lot less, presumably because of the much-stiffer-than-stock S.TECH springs - I could tell when I hit the dip coming into my apartment building's driveway at a diagonal angle; that always puts more stress on one corner of the car and makes it rub, but it rubbed much less this time, and not at all when I went over the speed bumps diagonally.
Still, I came straight upstairs and grabbed my tool box and special baseball bat for a ghetto-*** fender rolling session. I could see where the tires were rubbing - barely on any of the metal at all, just mostly on the little plastic bumper connector tabs and stuff, so I went nuts and hacked away with my snippers, pliers, scissors, and hack-saw blade and removed all plastic that had any sign of rubbing marks, and then gave it a good rolling session. I look forward to taking it for a spin tomorrow and testing it. I'll post results and pics shortly.
Got my TEIN S.TECH springs installed today (along with the stock cat since I'm moving to Cali in like 10 weeks).
My car barely seems to sit any lower at all in the rear. I had a full car with two large people in the back about 2 weeks ago, and I think they sorta squashed down the struts or whatever because it started rubbing pretty bad over the last 2 weeks after that. When they were in it, I couldn't even go around a gentle curve without constant rubbing on the outward-side of the car, it was horrible and embarrassing.
The front is noticeably dropped - it never had any rubbing issues, and thankfully still doesn't.
The rear sits at almost the same level it did before, but immediately rubbed the fenders a lot less, presumably because of the much-stiffer-than-stock S.TECH springs - I could tell when I hit the dip coming into my apartment building's driveway at a diagonal angle; that always puts more stress on one corner of the car and makes it rub, but it rubbed much less this time, and not at all when I went over the speed bumps diagonally.
Still, I came straight upstairs and grabbed my tool box and special baseball bat for a ghetto-*** fender rolling session. I could see where the tires were rubbing - barely on any of the metal at all, just mostly on the little plastic bumper connector tabs and stuff, so I went nuts and hacked away with my snippers, pliers, scissors, and hack-saw blade and removed all plastic that had any sign of rubbing marks, and then gave it a good rolling session. I look forward to taking it for a spin tomorrow and testing it. I'll post results and pics shortly.
Charles Bundy
iTrader: (5)
I think you will be safe with 225/40/18, but with that offset you will need to play a little with your camber or roll out a lip on your fenders. You'll likely have to do what OtherSyde did to his fronts.
Wheels, not rims!!
iTrader: (8)
Pictures of your suspension combination? Curious as I've never seen Progress Tech (street) springs + Koni yellows.
Registered
Also, as a quick update, my rear wheels/tires do not rub at all anymore, no matter how hard I try. this is after chopping out all the plastic bits and rolling the fenders pretty hard, twice. I snapped some cell phone pics too, I'll upload those shortly.
Zoom Zoom Boom
iTrader: (5)
Originally Posted by SayNoToPistons
Originally Posted by Jazzmeson ?
18x9.5 +27 wrapped in 255/40/18 tires all around.
Lowered on Progress Technology springs and Koni Yellows.
I'm pretty sure I can fit the rears with the fenders rolled, but I'm more concerned with the fronts.
Posted From RX8Club.com Android App
Pictures of your suspension combination? Curious as I've never seen Progress Tech (street) springs + Koni yellows.
18x9.5 +27 wrapped in 255/40/18 tires all around.
Lowered on Progress Technology springs and Koni Yellows.
I'm pretty sure I can fit the rears with the fenders rolled, but I'm more concerned with the fronts.
Posted From RX8Club.com Android App
Pictures of your suspension combination? Curious as I've never seen Progress Tech (street) springs + Koni yellows.
![](https://i60.tinypic.com/1690ly1.jpg)
![](https://i59.tinypic.com/szu1kl.jpg)
Posted From RX8Club.com Android App
Registered

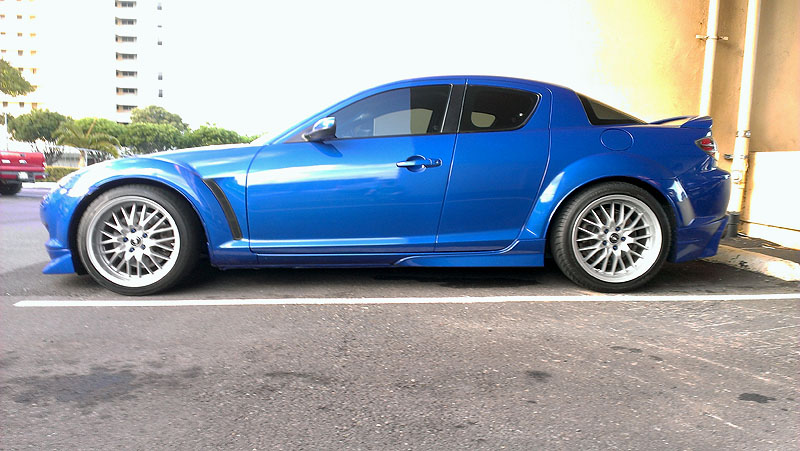

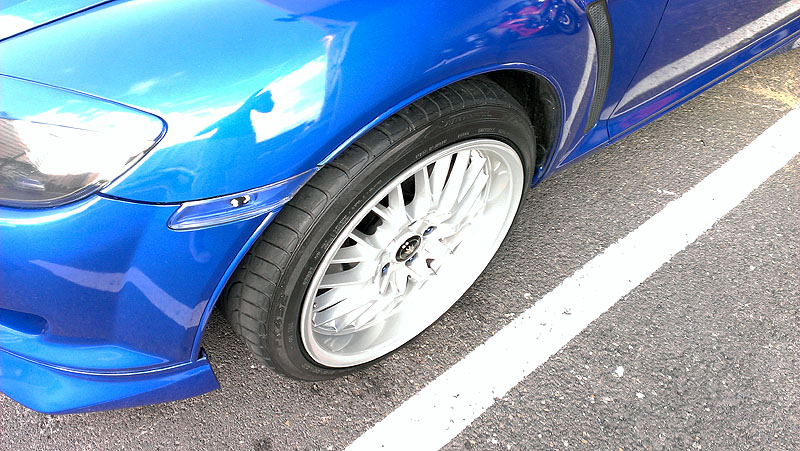

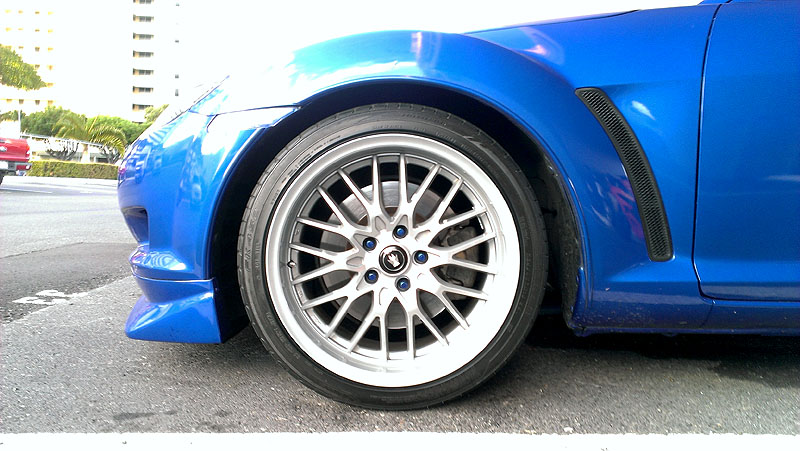

OK, sorry for the crappy cell-phone quality, I just snapped these today.
235/40/R18 in front (Falken 452's)
245/40/R18 in rear (Sumitomo HTR Z II's)
25mm spacers (Garageline)
TEIN S.TECH springs. Not rubbing yet, even with two people in the car - haven't tried it with 3 or 4 people yet.
235/40/R18 in front (Falken 452's)
245/40/R18 in rear (Sumitomo HTR Z II's)
25mm spacers (Garageline)
TEIN S.TECH springs. Not rubbing yet, even with two people in the car - haven't tried it with 3 or 4 people yet.
Registered
OK, sorry for the crappy cell-phone quality, I just snapped these today.
235/40/R18 in front (Falken 452's)
245/40/R18 in rear (Sumitomo HTR Z II's)
25mm spacers (Garageline)
TEIN S.TECH springs. Not rubbing yet, even with two people in the car - haven't tried it with 3 or 4 people yet.
235/40/R18 in front (Falken 452's)
245/40/R18 in rear (Sumitomo HTR Z II's)
25mm spacers (Garageline)
TEIN S.TECH springs. Not rubbing yet, even with two people in the car - haven't tried it with 3 or 4 people yet.
Registered
Yeah I know. As previously stated, I bought the car with very narrow 225/40/R18's on the front and 235/40/R18's on the rear, and both were too narrow for the 9.5" wide rims - and thus had that stupid "stretch" look to them.
I recently bought 245/40's for the rear, intending to phase the whole car to a square setup of those (on all 4 wheels), but I came to find that even those have a little bit of the stretched look on the 9.5" rims, and now I don't think they're wide enough and really want 255's or preferably 265's. So I'm in a bit of bind there. I thought 245's would be wide enough, but the rims' lips still stick out noticeably. The 235's on the front are the ones that were previously on the rear for the first 8 months I owned the car, so they're a bit worn and will be up for replacement before a whole lot longer, so I'll just move on up from there I guess.
I recently bought 245/40's for the rear, intending to phase the whole car to a square setup of those (on all 4 wheels), but I came to find that even those have a little bit of the stretched look on the 9.5" rims, and now I don't think they're wide enough and really want 255's or preferably 265's. So I'm in a bit of bind there. I thought 245's would be wide enough, but the rims' lips still stick out noticeably. The 235's on the front are the ones that were previously on the rear for the first 8 months I owned the car, so they're a bit worn and will be up for replacement before a whole lot longer, so I'll just move on up from there I guess.
![Frown](https://www.rx8club.com/images/smilies/frown.gif)
I need some advice on wheels.
1. 18X9.5 +15 MB battle with Nitto NT 555 245/40's on all 4
2. 18X9.5 +23 MB battle with same tires
Or any of the 18" battles the come in a variety of widths and offsets
8"+30, 8"+43, 9"+30.
I am at stock height right now but will be getting coilovers next. I do not want to roll the fenders. I would like the wheels to be flush to tucked in rather than poke out. Oh and no stretched tires so if I need a different tire size please let me know.
Sorry if something is messed up I am posting from my phone.
Thanks for your help
1. 18X9.5 +15 MB battle with Nitto NT 555 245/40's on all 4
2. 18X9.5 +23 MB battle with same tires
Or any of the 18" battles the come in a variety of widths and offsets
8"+30, 8"+43, 9"+30.
I am at stock height right now but will be getting coilovers next. I do not want to roll the fenders. I would like the wheels to be flush to tucked in rather than poke out. Oh and no stretched tires so if I need a different tire size please let me know.
Sorry if something is messed up I am posting from my phone.
Thanks for your help
Registered
Yeah that's my bad. Several posts in this thread kept saying that 245 is the common choice that most people tend to use and the consensus seemed to be that it was the go-to tire size, so I went for that. Oh well, 245 doesn't look terrible, just not quite as wide as I'd like. I'll correct it over time by phasing them out. Still waaay better than 225's stretched over 9.5" rims, for sure.
